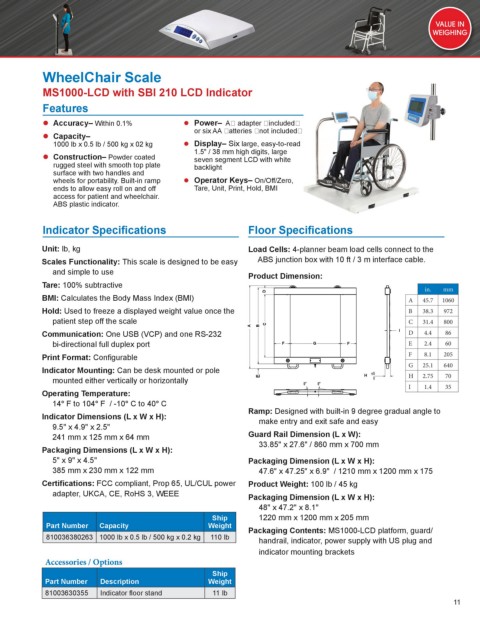

WheelChair Scale

MS1000-LCD with SBI 210 LCD Indicator
Features

 Accuracy– Within 0.1%  Power– A adapter included
or six AA atteries not included
 Capacity–
1000 lb x 0.5 lb / 500 kg x 02 kg  Display– Six large, easy-to-read
1.5" / 38 mm high digits, large
 Construction– Powder coated seven segment LCD with white
rugged steel with smooth top plate backlight
surface with two handles and
wheels for portability. Built-in ramp  Operator Keys– On/Off/Zero,
ends to allow easy roll on and off Tare, Unit, Print, Hold, BMI
access for patient and wheelchair.
ABS plastic indicator.

Indicator Specifications Floor Specifications

Unit: lb, kg Load Cells: 4-planner beam load cells connect to the
Scales Functionality: This scale is designed to be easy ABS junction box with 10 ft / 3 m interface cable.
and simple to use Product Dimension:
Tare: 100% subtractive
D D in. mm
BMI: Calculates the Body Mass Index (BMI) A 45.7 1060
Hold: Used to freeze a displayed weight value once the B 38.3 972
patient step off the scale C 31.4 800
A A B B C C I I
Communication: One USB (VCP) and one RS-232 D 4.4 86
bi-directional full duplex port F F G G F F E 2.4 60
Print Format: Configurable F 8.1 205
G 25.1 640
Indicator Mounting: Can be desk mounted or pole H H +5 5
+
mounted either vertically or horizontally E E 0 0 H 2.75 70
9 9° ° 9 9° ° I 1.4 35
Operating Temperature:
14° F to 104° F / -10° C to 40° C
Ramp: Designed with built-in 9 degree gradual angle to
Indicator Dimensions (L x W x H): make entry and exit safe and easy
9.5" x 4.9" x 2.5"
241 mm x 125 mm x 64 mm Guard Rail Dimension (L x W):
Packaging Dimensions (L x W x H): 33.85" x 27.6" / 860 mm x 700 mm
5" x 9" x 4.5" Packaging Dimension (L x W x H):
385 mm x 230 mm x 122 mm 47.6″ x 47.25″ x 6.9" / 1210 mm x 1200 mm x 175
Certifications: FCC compliant, Prop 65, UL/CUL power Product Weight: 100 lb / 45 kg
adapter, UKCA, CE, RoHS 3, WEEE Packaging Dimension (L x W x H):
48" x 47.2" x 8.1"
Ship 1220 mm x 1200 mm x 205 mm
Part Number Capacity Weight Packaging Contents: MS1000-LCD platform, guard/
810036380263 1000 lb x 0.5 lb / 500 kg x 0.2 kg 110 lb handrail, indicator, power supply with US plug and
indicator mounting brackets
Accessories / Options
Ship
Part Number Description Weight
81003630355 Indicator floor stand 11 lb
