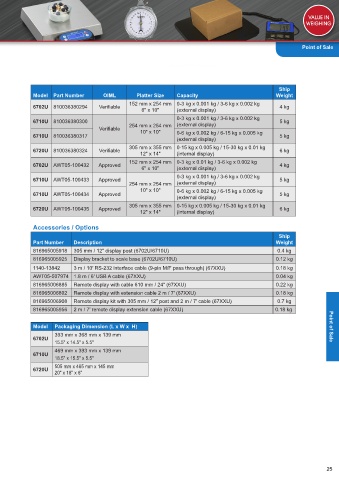

Page 25 - Brecknell_2025_product_guide_UK_Export_L_501671.indd

Point of Sale

Ship
Model Part Number OIML Platter Size Capacity Weight
152 mm x 254 mm 0-3 kg x 0.001 kg / 3-6 kg x 0.002 kg
6702U 810036380294 Verifiable 4 kg
6" x 10" (external display)
0-3 kg x 0.001 kg / 3-6 kg x 0.002 kg
6710U 810036380300 5 kg
Verifiable 254 mm x 254 mm (external display)
10" x 10"
6710U 810036380317 0-6 kg x 0.002 kg / 6-15 kg x 0.005 kg 5 kg
(external display)
305 mm x 355 mm 0-15 kg x 0.005 kg / 15-30 kg x 0.01 kg
6720U 810036380324 Verifiable 6 kg
12" x 14" (internal display)
152 mm x 254 mm 0-3 kg x 0.01 kg / 3-6 kg x 0.002 kg
6702U AWT05-100432 Approved 4 kg
6" x 10" (external display)
0-3 kg x 0.001 kg / 3-6 kg x 0.002 kg
6710U AWT05-100433 Approved 5 kg
254 mm x 254 mm (external display)
10" x 10" 0-6 kg x 0.002 kg / 6-15 kg x 0.005 kg
6710U AWT05-100434 Approved 5 kg
(external display)
305 mm x 355 mm 0-15 kg x 0.005 kg / 15-30 kg x 0.01 kg
6720U AWT05-100435 Approved 6 kg
12" x 14" (internal display)

Accessories / Options
Ship
Part Number Description Weight
816965005918 305 mm / 12" display post (6702U/6710U) 0.4 kg
816965005925 Display bracket to scale base (6702U/6710U) 0.12 kg
1140-13842 3 m / 10′ RS-232 interface cable (9-pin M/F pass through) (67XXU) 0.18 kg
AWT05-507974 1.8 m / 6′ USB A cable (67XXU) 0.04 kg
816965006885 Remote display with cable 610 mm / 24" (67XXU) 0.22 kg
816965006892 Remote display with extension cable 2 m / 7′ (67XXU) 0.18 kg
816965006908 Remote display kit with 305 mm / 12" post and 2 m / 7′ cable (67XXU) 0.7 kg
816965005956 2 m / 7′ remote display extension cable (67XXU) 0.18 kg

Model Packaging Dimension (L x W x H) Point of Sale
393 mm x 368 mm x 139 mm
6702U
15.5" x 14.5" x 5.5"
469 mm x 393 mm x 139 mm
6710U
18.5" x 15.5" x 5.5"
505 mm x 465 mm x 145 mm
6720U
20" x 18" x 6"
