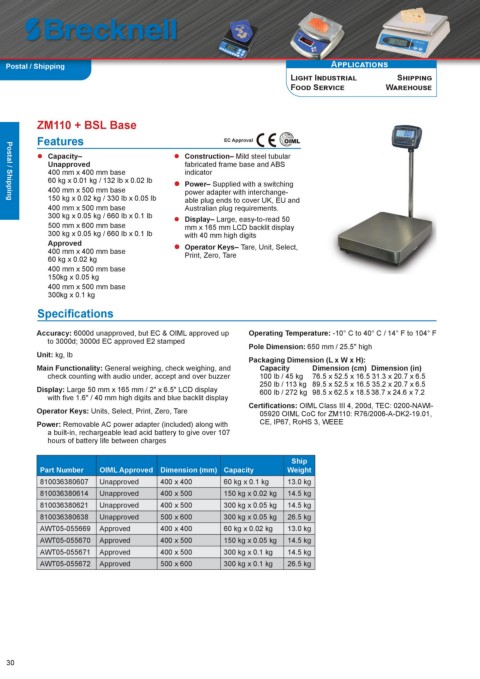

Page 30 - Brecknell_2024_product_guide_UK_Export_L_501671.indd

Postal / Shipping Applications
Light Industrial Shipping
Food Service Warehouse

ZM110 + BSL Base

Features EC Approval
 Capacity–  Construction– Mild steel tubular
Unapproved fabricated frame base and ABS
400 mm x 400 mm base indicator
60 kg x 0.01 kg / 132 lb x 0.02 lb  Power– Supplied with a switching
400 mm x 500 mm base power adapter with interchange-
150 kg x 0.02 kg / 330 lb x 0.05 lb able plug ends to cover UK, EU and
Postal / Shipping
400 mm x 500 mm base Australian plug requirements.
300 kg x 0.05 kg / 660 lb x 0.1 lb  Display– Large, easy-to-read 50
500 mm x 600 mm base mm x 165 mm LCD backlit display
300 kg x 0.05 kg / 660 lb x 0.1 lb with 40 mm high digits
Approved  Operator Keys– Tare, Unit, Select,
400 mm x 400 mm base Print, Zero, Tare
60 kg x 0.02 kg
400 mm x 500 mm base
150kg x 0.05 kg
400 mm x 500 mm base
300kg x 0.1 kg
Specifications

Accuracy: 6000d unapproved, but EC & OIML approved up Operating Temperature: -10° C to 40° C / 14° F to 104° F
to 3000d; 3000d EC approved E2 stamped
Pole Dimension: 650 mm / 25.5" high
Unit: kg, lb
Packaging Dimension (L x W x H):
Main Functionality: General weighing, check weighing, and Capacity Dimension (cm) Dimension (in)
check counting with audio under, accept and over buzzer 100 lb / 45 kg 76.5 x 52.5 x 16.5 31.3 x 20.7 x 6.5
250 lb / 113 kg 89.5 x 52.5 x 16.5 35.2 x 20.7 x 6.5
Display: Large 50 mm x 165 mm / 2" x 6.5" LCD display 600 lb / 272 kg 98.5 x 62.5 x 18.5 38.7 x 24.6 x 7.2
with five 1.6" / 40 mm high digits and blue backlit display
Certifications: OIML Class III 4, 200d, TEC: 0200-NAWI-
Operator Keys: Units, Select, Print, Zero, Tare 05920 OIML CoC for ZM110: R76/2006-A-DK2-19.01,
Power: Removable AC power adapter (included) along with CE, IP67, RoHS 3, WEEE
a built-in, rechargeable lead acid battery to give over 107
hours of battery life between charges

Ship
Part Number OIML Approved Dimension (mm) Capacity Weight
810036380607 Unapproved 400 x 400 60 kg x 0.1 kg 13.0 kg
810036380614 Unapproved 400 x 500 150 kg x 0.02 kg 14.5 kg
810036380621 Unapproved 400 x 500 300 kg x 0.05 kg 14.5 kg
810036380638 Unapproved 500 x 600 300 kg x 0.05 kg 26.5 kg
AWT05-055669 Approved 400 x 400 60 kg x 0.02 kg 13.0 kg
AWT05-055670 Approved 400 x 500 150 kg x 0.05 kg 14.5 kg
AWT05-055671 Approved 400 x 500 300 kg x 0.1 kg 14.5 kg
AWT05-055672 Approved 500 x 600 300 kg x 0.1 kg 26.5 kg
