Applications Postal / Shipping
Light Industrial Shipping
Food Service Warehouse

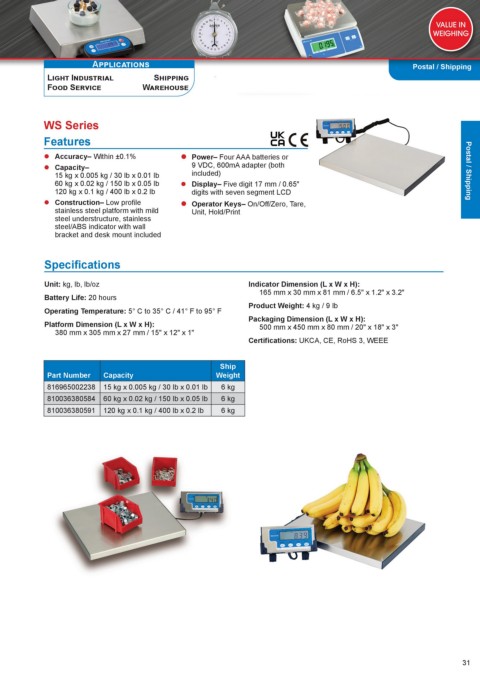

WS Series

Features
 Accuracy– Within ±0.1%  Power– Four AAA batteries or
 Capacity– 9 VDC, 600mA adapter (both
15 kg x 0.005 kg / 30 lb x 0.01 lb included) Postal / Shipping
60 kg x 0.02 kg / 150 lb x 0.05 lb  Display– Five digit 17 mm / 0.65"
120 kg x 0.1 kg / 400 lb x 0.2 lb digits with seven segment LCD
 Construction– Low profile  Operator Keys– On/Off/Zero, Tare,
stainless steel platform with mild Unit, Hold/Print
steel understructure, stainless
steel/ABS indicator with wall
bracket and desk mount included

Specifications

Unit: kg, lb, lb/oz Indicator Dimension (L x W x H):
165 mm x 30 mm x 81 mm / 6.5" x 1.2" x 3.2"
Battery Life: 20 hours
Product Weight: 4 kg / 9 lb
Operating Temperature: 5° C to 35° C / 41° F to 95° F
Packaging Dimension (L x W x H):
Platform Dimension (L x W x H): 500 mm x 450 mm x 80 mm / 20" x 18" x 3"
380 mm x 305 mm x 27 mm / 15" x 12" x 1"
Certifications: UKCA, CE, RoHS 3, WEEE

Ship
Part Number Capacity Weight
816965002238 15 kg x 0.005 kg / 30 lb x 0.01 lb 6 kg
810036380584 60 kg x 0.02 kg / 150 lb x 0.05 lb 6 kg
810036380591 120 kg x 0.1 kg / 400 lb x 0.2 lb 6 kg
