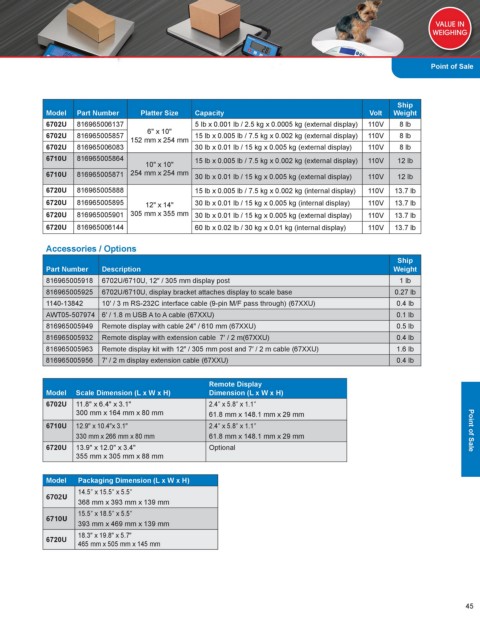

Page 45 - Brecknell_2025_product_guide_USA_L_501053.indd

Point of Sale

Ship
Model Part Number Platter Size Capacity Volt Weight
6702U 816965006137 5 lb x 0.001 lb / 2.5 kg x 0.0005 kg (external display) 110V 8 lb
6" x 10"
6702U 816965005857 152 mm x 254 mm 15 lb x 0.005 lb / 7.5 kg x 0.002 kg (external display) 110V 8 lb
6702U 816965006083 30 lb x 0.01 lb / 15 kg x 0.005 kg (external display) 110V 8 lb
6710U 816965005864 15 lb x 0.005 lb / 7.5 kg x 0.002 kg (external display) 110V 12 lb
10" x 10"
6710U 816965005871 254 mm x 254 mm 30 lb x 0.01 lb / 15 kg x 0.005 kg (external display) 110V 12 lb

6720U 816965005888 15 lb x 0.005 lb / 7.5 kg x 0.002 kg (internal display) 110V 13.7 lb
6720U 816965005895 12" x 14" 30 lb x 0.01 lb / 15 kg x 0.005 kg (internal display) 110V 13.7 lb
6720U 816965005901 305 mm x 355 mm 30 lb x 0.01 lb / 15 kg x 0.005 kg (external display) 110V 13.7 lb
6720U 816965006144 60 lb x 0.02 lb / 30 kg x 0.01 kg (internal display) 110V 13.7 lb

Accessories / Options
Ship
Part Number Description Weight
816965005918 6702U/6710U, 12″ / 305 mm display post 1 lb
816965005925 6702U/6710U, display bracket attaches display to scale base 0.27 lb
1140-13842 10′ / 3 m RS-232C interface cable (9-pin M/F pass through) (67XXU) 0.4 lb
AWT05-507974 6′ / 1.8 m USB A to A cable (67XXU) 0.1 lb
816965005949 Remote display with cable 24″ / 610 mm (67XXU) 0.5 lb
816965005932 Remote display with extension cable 7′ / 2 m(67XXU) 0.4 lb
816965005963 Remote display kit with 12″ / 305 mm post and 7′ / 2 m cable (67XXU) 1.6 lb
816965005956 7′ / 2 m display extension cable (67XXU) 0.4 lb

Remote Display
Model Scale Dimension (L x W x H) Dimension (L x W x H)
6702U 11.8" x 6.4" x 3.1" 2.4″ x 5.8″ x 1.1″
300 mm x 164 mm x 80 mm 61.8 mm x 148.1 mm x 29 mm
6710U 12.9″ x 10.4″x 3.1″ 2.4″ x 5.8″ x 1.1″
330 mm x 266 mm x 80 mm 61.8 mm x 148.1 mm x 29 mm Point of Sale
6720U 13.9" x 12.0" x 3.4" Optional
355 mm x 305 mm x 88 mm

Model Packaging Dimension (L x W x H)
14.5″ x 15.5″ x 5.5″
6702U
368 mm x 393 mm x 139 mm
15.5″ x 18.5″ x 5.5″
6710U
393 mm x 469 mm x 139 mm
18.3″ x 19.8″ x 5.7″
6720U
465 mm x 505 mm x 145 mm

45
