FORCE MEASUREMENT EQUIPMENT

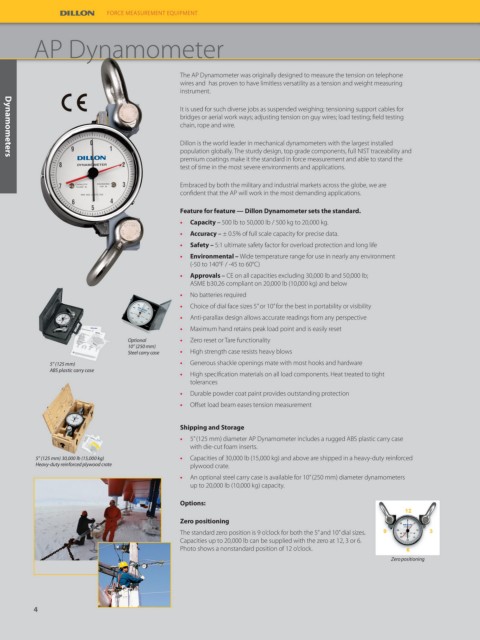

          AP Dynamometer




                                                  The AP Dynamometer was originally designed to measure the tension on telephone
                                                  wires and  has proven to have limitless versatility as a tension and weight measuring
                                                  instrument.

                                                  It is used for such diverse jobs as suspended weighing; tensioning support cables for
                                                  bridges or aerial work ways; adjusting tension on guy wires; load testing; field testing
                                                  chain, rope and wire.


                                                  Dillon is the world leader in mechanical dynamometers with the largest installed
                                                  population globally. The sturdy design, top grade components, full NIST traceability and
                                                  premium coatings make it the standard in force measurement and able to stand the
  Dynamometers
                                                  test of time in the most severe environments and applications.

                                                  Embraced by both the military and industrial markets across the globe, we are
                                                  confident that the AP will work in the most demanding applications.

                                                  Feature for feature — Dillon Dynamometer sets the standard.
                                                  •  Capacity – 500 lb to 50,000 lb / 500 kg to 20,000 kg.
                                                  •  Accuracy – ± 0.5% of full scale capacity for precise data.
                                                  •  Safety – 5:1 ultimate safety factor for overload protection and long life
                                                  •  Environmental – Wide temperature range for use in nearly any environment
                                                    (-50 to 140°F / -45 to 60°C)
                                                  •  Approvals – CE on all capacities excluding 30,000 lb and 50,000 lb;
                                                    ASME b30.26 compliant on 20,000 lb (10,000 kg) and below
                                                  •  No batteries required
                                                  •  Choice of dial face sizes 5” or 10” for the best in portability or visibility
                                                  •  Anti-parallax design allows accurate readings from any perspective
                                                  •  Maximum hand retains peak load point and is easily reset
                                   Optional       •  Zero reset or Tare functionality
                                   10” (250 mm)
                                   Steel carry case  •  High strength case resists heavy blows
              5” (125 mm)                         •  Generous shackle openings mate with most hooks and hardware
              ABS plastic carry case
                                                  •  High specification materials on all load components. Heat treated to tight
                                                    tolerances
                                                  •  Durable powder coat paint provides outstanding protection
                                                  •  Offset load beam eases tension measurement


                                                  Shipping and Storage
                                                  •  5” (125 mm) diameter AP Dynamometer includes a rugged ABS plastic carry case
                                                    with die-cut foam inserts.
           5” (125 mm) 30,000 lb (15,000 kg)      •  Capacities of 30,000 lb (15,000 kg) and above are shipped in a heavy-duty reinforced
           Heavy-duty reinforced plywood crate      plywood crate.
                                                  •  An optional steel carry case is available for 10” (250 mm) diameter dynamometers
                                                    up to 20,000 lb (10,000 kg) capacity.

                                                  Options:

                                                  Zero positioning
                                                  The standard zero position is 9 o’clock for both the 5” and 10” dial sizes.
                                                  Capacities up to 20,000 lb can be supplied with the zero at 12, 3 or 6.
                                                  Photo shows a nonstandard position of 12 o’clock.
                                                                                                           Zero positioning
