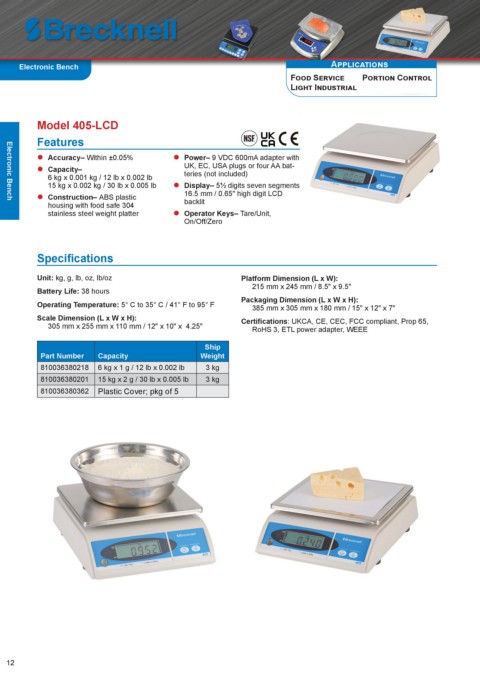

Page 12 - Brecknell_2024_product_guide_UK_Export_L_501671.indd

Electronic Bench Applications
Food Service Portion Control
Light Industrial

Model 405-LCD

Features ®
COMPONENT
 Accuracy– Within ±0.05%  Power– 9 VDC 600mA adapter with
 Capacity– UK, EC, USA plugs or four AA bat-
teries (not included)
6 kg x 0.001 kg / 12 lb x 0.002 lb
15 kg x 0.002 kg / 30 lb x 0.005 lb  Display– 5½ digits seven segments
 Construction– ABS plastic 16.5 mm / 0.65" high digit LCD
Electronic Bench
housing with food safe 304 backlit
stainless steel weight platter  Operator Keys– Tare/Unit,
On/Off/Zero

Specifications

Unit: kg, g, lb, oz, lb/oz Platform Dimension (L x W):
215 mm x 245 mm / 8.5" x 9.5"
Battery Life: 38 hours
Packaging Dimension (L x W x H):
Operating Temperature: 5° C to 35° C / 41° F to 95° F 385 mm x 305 mm x 180 mm / 15" x 12" x 7"
Scale Dimension (L x W x H): Certifications: UKCA, CE, CEC, FCC compliant, Prop 65,
305 mm x 255 mm x 110 mm / 12″ x 10" x 4.25" RoHS 3, ETL power adapter, WEEE

Ship
Part Number Capacity Weight
810036380218 6 kg x 1 g / 12 lb x 0.002 lb 3 kg
810036380201 15 kg x 2 g / 30 lb x 0.005 lb 3 kg
810036380362 Plastic Cover; pkg of 5

12
