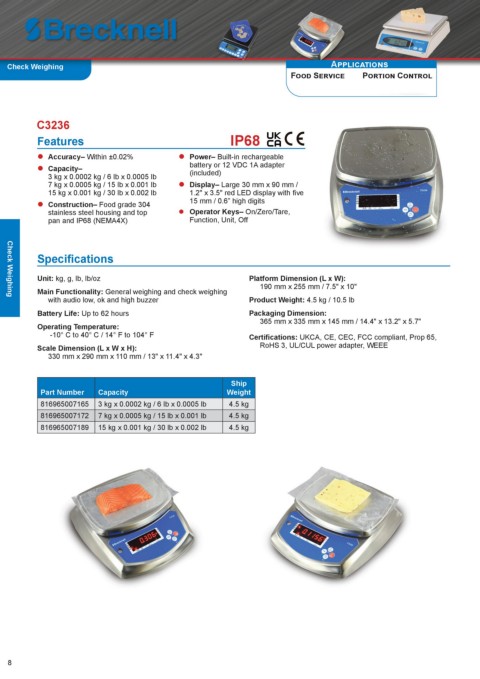

Page 8 - Brecknell_2024_product_guide_UK_Export_L_501671.indd

Check Weighing Applications
Food Service Portion Control

C3236

Features IP68

 Accuracy– Within ±0.02%  Power– Built-in rechargeable
battery or 12 VDC 1A adapter
 Capacity– (included)
3 kg x 0.0002 kg / 6 lb x 0.0005 lb
7 kg x 0.0005 kg / 15 lb x 0.001 lb  Display– Large 30 mm x 90 mm /
15 kg x 0.001 kg / 30 lb x 0.002 lb 1.2" x 3.5" red LED display with five
 Construction– Food grade 304 15 mm / 0.6” high digits
stainless steel housing and top  Operator Keys– On/Zero/Tare,
pan and IP68 (NEMA4X) Function, Unit, Off

Specifications

Unit: kg, g, lb, lb/oz Platform Dimension (L x W):
190 mm x 255 mm / 7.5" x 10"
Main Functionality: General weighing and check weighing
with audio low, ok and high buzzer Product Weight: 4.5 kg / 10.5 lb
Check Weighing
Battery Life: Up to 62 hours Packaging Dimension:
365 mm x 335 mm x 145 mm / 14.4" x 13.2" x 5.7"
Operating Temperature:
-10° C to 40° C / 14° F to 104° F Certifications: UKCA, CE, CEC, FCC compliant, Prop 65,
Scale Dimension (L x W x H): RoHS 3, UL/CUL power adapter, WEEE
330 mm x 290 mm x 110 mm / 13" x 11.4" x 4.3"

Ship
Part Number Capacity Weight
816965007165 3 kg x 0.0002 kg / 6 lb x 0.0005 lb 4.5 kg
816965007172 7 kg x 0.0005 kg / 15 lb x 0.001 lb 4.5 kg
816965007189 15 kg x 0.001 kg / 30 lb x 0.002 lb 4.5 kg

8
