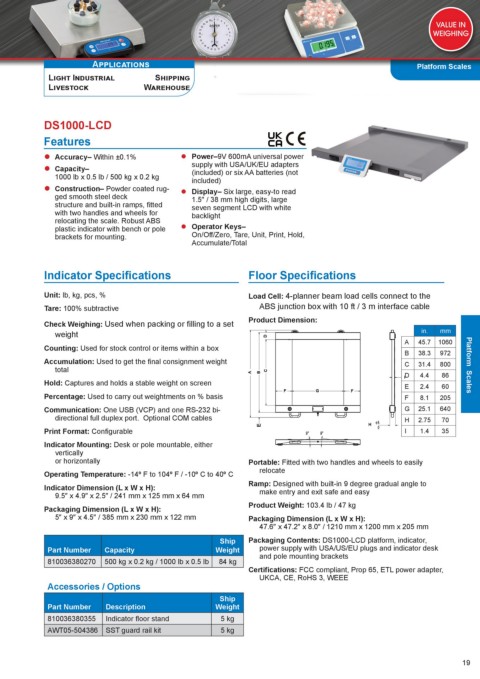

Page 19 - Brecknell_2024_product_guide_UK_Export_L_501671.indd

Applications Platform Scales
Light Industrial Shipping
Livestock Warehouse

DS1000-LCD

Features

 Accuracy– Within ±0.1%  Power–9V 600mA universal power
 Capacity– supply with USA/UK/EU adapters
(included) or six AA batteries (not
1000 lb x 0.5 lb / 500 kg x 0.2 kg included)
 Construction– Powder coated rug-  Display– Six large, easy-to read
ged smooth steel deck 1.5″ / 38 mm high digits, large
structure and built-in ramps, fitted seven segment LCD with white
with two handles and wheels for backlight
relocating the scale. Robust ABS
plastic indicator with bench or pole  Operator Keys–
brackets for mounting. On/Off/Zero, Tare, Unit, Print, Hold,
Accumulate/Total

Indicator Specifications Floor Specifications

Unit: lb, kg, pcs, % Load Cell: 4-planner beam load cells connect to the
Tare: 100% subtractive ABS junction box with 10 ft / 3 m interface cable
Check Weighing: Used when packing or filling to a set Product Dimension:
weight D D in. mm
A 45.7 1060
Counting: Used for stock control or items within a box
B 38.3 972
Accumulation: Used to get the final consignment weight C 31.4 800
total Platform Scales
I I D 4.4 86
A A B B C C
Hold: Captures and holds a stable weight on screen E 2.4 60
F F G G F F
Percentage: Used to carry out weightments on % basis F 8.1 205
Communication: One USB (VCP) and one RS-232 bi- G 25.1 640
directional full duplex port. Optional COM cables H 2.75 70
+

E E H H +5 5 0 0
Print Format: Configurable 9 9° ° 9 9° I 1.4 35
°
Indicator Mounting: Desk or pole mountable, either
vertically
or horizontally Portable: Fitted with two handles and wheels to easily
relocate
Operating Temperature: -14º F to 104º F / -10º C to 40º C
Ramp: Designed with built-in 9 degree gradual angle to
Indicator Dimension (L x W x H): make entry and exit safe and easy
9.5″ x 4.9″ x 2.5″ / 241 mm x 125 mm x 64 mm
Packaging Dimension (L x W x H): Product Weight: 103.4 lb / 47 kg
5″ x 9″ x 4.5″ / 385 mm x 230 mm x 122 mm Packaging Dimension (L x W x H):
47.6″ x 47.2″ x 8.0″ / 1210 mm x 1200 mm x 205 mm
Ship Packaging Contents: DS1000-LCD platform, indicator,
Part Number Capacity Weight power supply with USA/US/EU plugs and indicator desk
and pole mounting brackets
810036380270 500 kg x 0.2 kg / 1000 lb x 0.5 lb 84 kg
Certifications: FCC compliant, Prop 65, ETL power adapter,
UKCA, CE, RoHS 3, WEEE
Accessories / Options
Ship
Part Number Description Weight
810036380355 Indicator floor stand 5 kg
AWT05-504386 SST guard rail kit 5 kg
