Applications Platform Scales
Animal Weighing Shipping
Industrial Warehouse

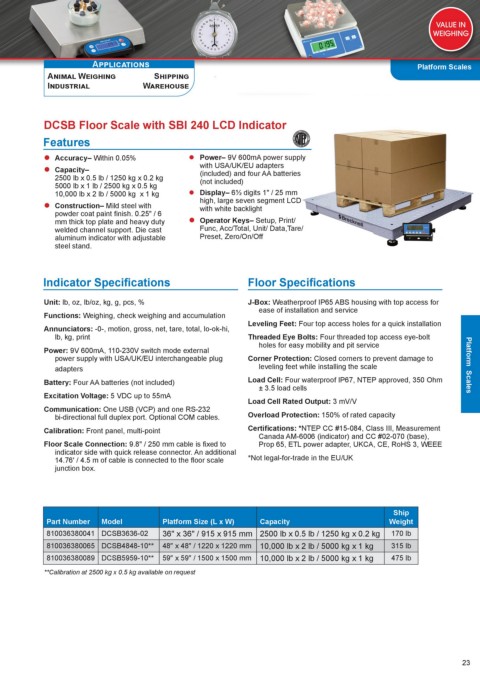

DCSB Floor Scale with SBI 240 LCD Indicator

Features

 Accuracy– Within 0.05%  Power– 9V 600mA power supply
 Capacity– with USA/UK/EU adapters
(included) and four AA batteries
2500 lb x 0.5 lb / 1250 kg x 0.2 kg (not included)
5000 lb x 1 lb / 2500 kg x 0.5 kg
10,000 lb x 2 lb / 5000 kg x 1 kg  Display– 6½ digits 1" / 25 mm
 Construction– Mild steel with high, large seven segment LCD
with white backlight
powder coat paint finish. 0.25" / 6
mm thick top plate and heavy duty  Operator Keys– Setup, Print/
welded channel support. Die cast Func, Acc/Total, Unit/ Data,Tare/
aluminum indicator with adjustable Preset, Zero/On/Off
steel stand.

Indicator Specifications Floor Specifications

Unit: lb, oz, lb/oz, kg, g, pcs, % J-Box: Weatherproof IP65 ABS housing with top access for
ease of installation and service
Functions: Weighing, check weighing and accumulation
Leveling Feet: Four top access holes for a quick installation
Annunciators: -0-, motion, gross, net, tare, total, lo-ok-hi,
lb, kg, print Threaded Eye Bolts: Four threaded top access eye-bolt
holes for easy mobility and pit service
Power: 9V 600mA, 110-230V switch mode external
power supply with USA/UK/EU interchangeable plug Corner Protection: Closed corners to prevent damage to
adapters leveling feet while installing the scale Platform Scales
Battery: Four AA batteries (not included) Load Cell: Four waterproof IP67, NTEP approved, 350 Ohm
± 3.5 load cells
Excitation Voltage: 5 VDC up to 55mA
Load Cell Rated Output: 3 mV/V
Communication: One USB (VCP) and one RS-232
bi-directional full duplex port. Optional COM cables. Overload Protection: 150% of rated capacity
Calibration: Front panel, multi-point Certifications: *NTEP CC #15-084, Class III, Measurement
Canada AM-6006 (indicator) and CC #02-070 (base),
Floor Scale Connection: 9.8" / 250 mm cable is fixed to Prop 65, ETL power adapter, UKCA, CE, RoHS 3, WEEE
indicator side with quick release connector. An additional
14.76' / 4.5 m of cable is connected to the floor scale *Not legal-for-trade in the EU/UK
junction box.

Ship
Part Number Model Platform Size (L x W) Capacity Weight
810036380041 DCSB3636-02 36" x 36" / 915 x 915 mm 2500 lb x 0.5 lb / 1250 kg x 0.2 kg 170 lb
810036380065 DCSB4848-10** 48″ x 48″ / 1220 x 1220 mm 10,000 lb x 2 lb / 5000 kg x 1 kg 315 lb
810036380089 DCSB5959-10** 59″ x 59″ / 1500 x 1500 mm 10,000 lb x 2 lb / 5000 kg x 1 kg 475 lb
**Calibration at 2500 kg x 0.5 kg available on request
