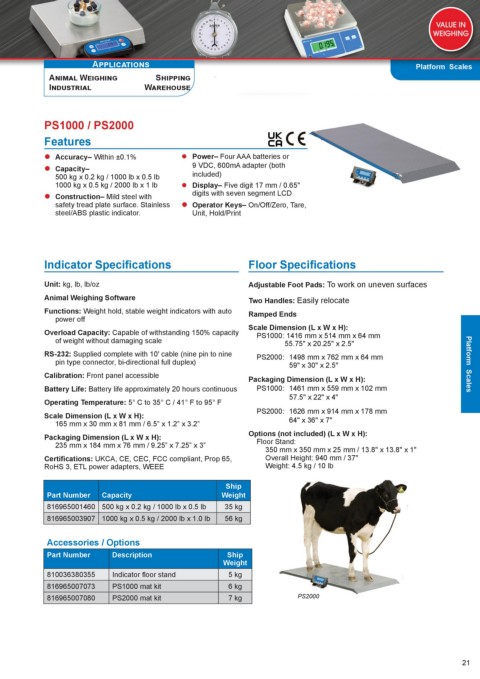

Page 21 - Brecknell_2024_product_guide_UK_Export_L_501671.indd

Applications Platform Scales
Animal Weighing Shipping
Industrial Warehouse

PS1000 / PS2000

Features

 Accuracy– Within ±0.1%  Power– Four AAA batteries or
 Capacity– 9 VDC, 600mA adapter (both
500 kg x 0.2 kg / 1000 lb x 0.5 lb included)
1000 kg x 0.5 kg / 2000 lb x 1 lb  Display– Five digit 17 mm / 0.65"
 Construction– Mild steel with digits with seven segment LCD
safety tread plate surface. Stainless  Operator Keys– On/Off/Zero, Tare,
steel/ABS plastic indicator. Unit, Hold/Print

Indicator Specifications Floor Specifications

Unit: kg, lb, lb/oz Adjustable Foot Pads: To work on uneven surfaces
Animal Weighing Software Two Handles: Easily relocate
Functions: Weight hold, stable weight indicators with auto Ramped Ends
power off
Scale Dimension (L x W x H):
Overload Capacity: Capable of withstanding 150% capacity PS1000: 1416 mm x 514 mm x 64 mm
of weight without damaging scale 55.75" x 20.25" x 2.5"
RS-232: Supplied complete with 10′ cable (nine pin to nine PS2000: 1498 mm x 762 mm x 64 mm
pin type connector, bi-directional full duplex) 59" x 30" x 2.5" Platform Scales
Calibration: Front panel accessible Packaging Dimension (L x W x H):

Battery Life: Battery life approximately 20 hours continuous PS1000: 1461 mm x 559 mm x 102 mm
57.5" x 22" x 4″
Operating Temperature: 5° C to 35° C / 41° F to 95° F
PS2000: 1626 mm x 914 mm x 178 mm
Scale Dimension (L x W x H): 64" x 36" x 7"
165 mm x 30 mm x 81 mm / 6.5” x 1.2” x 3.2”
Packaging Dimension (L x W x H): Options (not included) (L x W x H):
235 mm x 184 mm x 76 mm / 9.25” x 7.25” x 3” Floor Stand:
350 mm x 350 mm x 25 mm / 13.8" x 13.8" x 1"
Certifications: UKCA, CE, CEC, FCC compliant, Prop 65, Overall Height: 940 mm / 37"
RoHS 3, ETL power adapters, WEEE Weight: 4.5 kg / 10 lb

Ship
Part Number Capacity Weight
816965001460 500 kg x 0.2 kg / 1000 lb x 0.5 lb 35 kg
816965003907 1000 kg x 0.5 kg / 2000 lb x 1.0 lb 56 kg

Accessories / Options
Part Number Description Ship
Weight
810036380355 Indicator floor stand 5 kg
816965007073 PS1000 mat kit 6 kg
816965007080 PS2000 mat kit 7 kg PS2000

21
