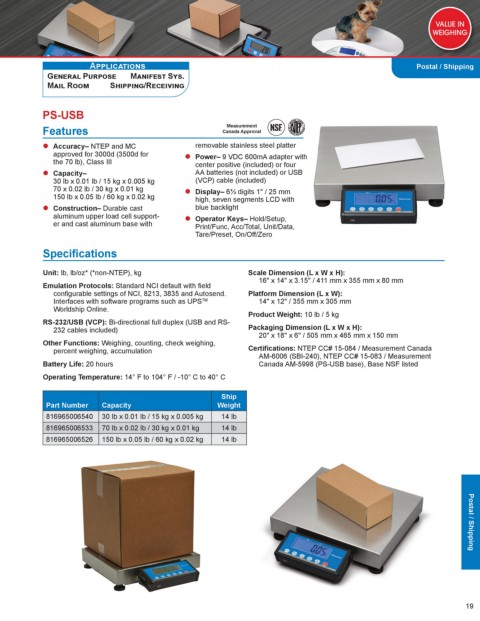

Page 19 - Brecknell_2025_product_guide_USA_L_501053.indd

Applications Postal / Shipping
General Purpose Manifest Sys.
Mail Room Shipping/Receiving

PS-USB

Measurement
Features Canada Approval ®
COMPONENT
 Accuracy– NTEP and MC removable stainless steel platter
approved for 3000d (3500d for  Power– 9 VDC 600mA adapter with
the 70 lb), Class III center positive (included) or four
 Capacity– AA batteries (not included) or USB
30 lb x 0.01 lb / 15 kg x 0.005 kg (VCP) cable (included)
70 x 0.02 lb / 30 kg x 0.01 kg  Display– 6½ digits 1" / 25 mm
150 lb x 0.05 lb / 60 kg x 0.02 kg high, seven segments LCD with
 Construction– Durable cast blue backlight
aluminum upper load cell support-  Operator Keys– Hold/Setup,
er and cast aluminum base with Print/Func, Acc/Total, Unit/Data,
Tare/Preset, On/Off/Zero
Specifications

Unit: lb, lb/oz* (*non-NTEP), kg Scale Dimension (L x W x H):
16" x 14" x 3.15" / 411 mm x 355 mm x 80 mm
Emulation Protocols: Standard NCI default with field
configurable settings of NCI, 8213, 3835 and Autosend. Platform Dimension (L x W):
Interfaces with software programs such as UPS TM 14" x 12" / 355 mm x 305 mm
Worldship Online.
Product Weight: 10 lb / 5 kg
RS-232/USB (VCP): Bi-directional full duplex (USB and RS-
232 cables included) Packaging Dimension (L x W x H):
20" x 18" x 6" / 505 mm x 465 mm x 150 mm
Other Functions: Weighing, counting, check weighing,
percent weighing, accumulation Certifications: NTEP CC# 15-084 / Measurement Canada
AM-6006 (SBI-240), NTEP CC# 15-083 / Measurement
Battery Life: 20 hours Canada AM-5998 (PS-USB base), Base NSF listed
Operating Temperature: 14° F to 104° F / -10° C to 40° C

Ship
Part Number Capacity Weight
816965006540 30 lb x 0.01 lb / 15 kg x 0.005 kg 14 lb
816965006533 70 lb x 0.02 lb / 30 kg x 0.01 kg 14 lb
816965006526 150 lb x 0.05 lb / 60 kg x 0.02 kg 14 lb

Postal / Shipping
