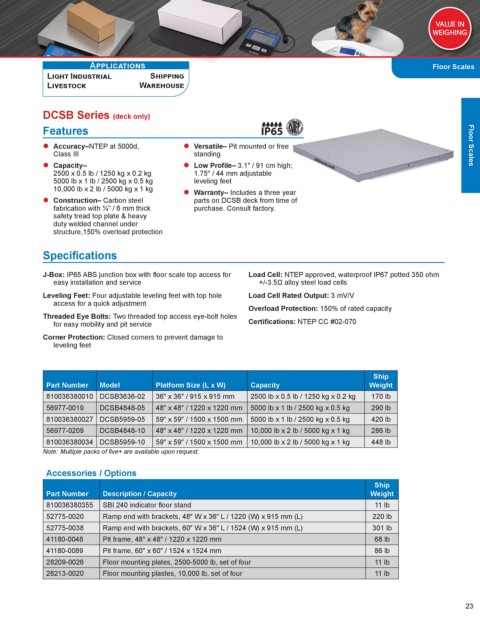

Applications                                                                           Floor Scales
             Light Industrial          Shipping
             Livestock               Warehouse



            DCSB Series (deck only)
            Features
             Accuracy–NTEP at 5000d,            Versatile– Pit mounted or free                                         Floor Scales
               Class III                          standing
             Capacity–                          Low Profile– 3.1" / 91 cm high;
               2500 x 0.5 lb / 1250 kg x 0.2 kg   1.75″ / 44 mm adjustable
               5000 lb x 1 lb / 2500 kg x 0.5 kg    leveling feet
               10,000 lb x 2 lb / 5000 kg x 1 kg    Warranty– Includes a three year
             Construction– Carbon steel          parts on DCSB deck from time of
               fabrication with ¼” / 6 mm thick   purchase. Consult factory.
               safety tread top plate & heavy
               duty welded channel under
               structure,150% overload protection


            Specifications

            J-Box: IP65 ABS junction box with floor scale top access for   Load Cell: NTEP approved, waterproof IP67 potted 350 ohm
               easy installation and service                       +/-3.5Ω alloy steel load cells
            Leveling Feet: Four adjustable leveling feet with top hole   Load Cell Rated Output: 3 mV/V
               access for a quick adjustment
                                                                Overload Protection: 150% of rated capacity
            Threaded Eye Bolts: Two threaded top access eye-bolt holes
               for easy mobility and pit service                Certifications: NTEP CC #02-070
            Corner Protection: Closed corners to prevent damage to
               leveling feet



                                                                                                Ship
             Part Number   Model         Platform Size (L x W)   Capacity                      Weight
             810036380010 DCSB3636-02    36" x 36" / 915 x 915 mm  2500 lb x 0.5 lb / 1250 kg x 0.2 kg  170 lb
             56977-0019   DCSB4848-05    48″ x 48″ / 1220 x 1220 mm  5000 lb x 1 lb / 2500 kg x 0.5 kg  290 lb
             810036380027 DCSB5959-05    59″ x 59″ / 1500 x 1500 mm  5000 lb x 1 lb / 2500 kg x 0.5 kg  420 lb
             56977-0209   DCSB4848-10    48″ x 48″ / 1220 x 1220 mm  10,000 lb x 2 lb / 5000 kg x 1 kg  286 lb
             810036380034 DCSB5959-10    59″ x 59″ / 1500 x 1500 mm  10,000 lb x 2 lb / 5000 kg x 1 kg  448 lb
            Note:  Multiple packs of five+ are available upon request.

             Accessories / Options

                                                                                                 Ship
             Part Number   Description / Capacity                                               Weight
             810036380355  SBI 240 indicator floor stand                                         11 lb
             52775-0020    Ramp end with brackets, 48″ W x 36″ L / 1220 (W) x 915 mm (L)        220 lb
             52775-0038    Ramp end with brackets, 60″ W x 36″ L / 1524 (W) x 915 mm (L)        301 lb
             41180-0048    Pit frame, 48″ x 48″ / 1220 x 1220 mm                                 68 lb
             41180-0089    Pit frame, 60″ x 60″ / 1524 x 1524 mm                                 86 lb
             28209-0026    Floor mounting plates, 2500-5000 lb, set of four                      11 lb
             28213-0020    Floor mounting plastes, 10,000 lb, set of four                        11 lb
