P. 24

Floor Scales                                                                       Applications
                                                                             Light Industrial          Shipping
                                                                             Livestock              Warehouse

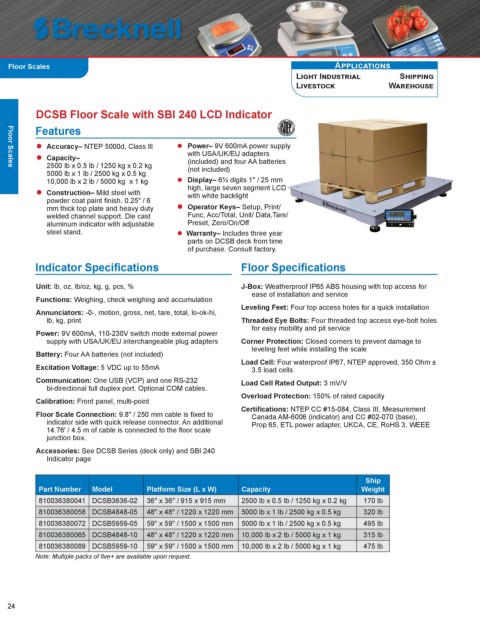

          DCSB Floor Scale with SBI 240 LCD Indicator

          Features
           Accuracy– NTEP 5000d, Class lll    Power– 9V 600mA power supply
           Capacity–                            with USA/UK/EU adapters
                                                 (included) and four AA batteries
             2500 lb x 0.5 lb / 1250 kg x 0.2 kg   (not included)
   Floor Scales
             5000 lb x 1 lb / 2500 kg x 0.5 kg
             10,000 lb x 2 lb / 5000 kg  x 1 kg   Display– 6½ digits 1" / 25 mm
           Construction– Mild steel with        high, large seven segment LCD
                                                 with white backlight
             powder coat paint finish. 0.25" / 6
             mm thick top plate and heavy duty    Operator Keys– Setup, Print/
             welded channel support. Die cast    Func, Acc/Total, Unit/ Data,Tare/
             aluminum indicator with adjustable   Preset, Zero/On/Off
             steel stand.                      Warranty– Includes three year
                                                 parts on DCSB deck from time
                                                 of purchase. Consult factory.
          Indicator Specifications                             Floor Specifications


          Unit: lb, oz, lb/oz, kg, g, pcs, %                  J-Box: Weatherproof IP65 ABS housing with top access for
                                                                 ease of installation and service
          Functions: Weighing, check weighing and accumulation
                                                              Leveling Feet: Four top access holes for a quick installation
          Annunciators: -0-, motion, gross, net, tare, total, lo-ok-hi,
             lb, kg, print                                    Threaded Eye Bolts: Four threaded top access eye-bolt holes
                                                                 for easy mobility and pit service
          Power: 9V 600mA, 110-230V switch mode external power
             supply with USA/UK/EU interchangeable plug adapters  Corner Protection: Closed corners to prevent damage to
                                                                 leveling feet while installing the scale
          Battery: Four AA batteries (not included)
                                                              Load Cell: Four waterproof IP67, NTEP approved, 350 Ohm ±
          Excitation Voltage: 5 VDC up to 55mA                   3.5 load cells
          Communication: One USB (VCP) and one RS-232         Load Cell Rated Output: 3 mV/V
             bi-directional full duplex port. Optional COM cables.
                                                              Overload Protection: 150% of rated capacity
          Calibration: Front panel, multi-point
                                                              Certifications: NTEP CC #15-084, Class III, Measurement
          Floor Scale Connection: 9.8" / 250 mm cable is fixed to    Canada AM-6006 (indicator) and CC #02-070 (base),
             indicator side with quick release connector. An additional   Prop 65, ETL power adapter, UKCA, CE, RoHS 3, WEEE
             14.76' / 4.5 m of cable is connected to the floor scale
             junction box.
          Accessories: See DCSB Series (deck only) and SBI 240
             Indicator page


                                                                                              Ship
           Part Number   Model        Platform Size (L x W)    Capacity                      Weight
           810036380041 DCSB3636-02   36" x 36" / 915 x 915 mm  2500 lb x 0.5 lb / 1250 kg x 0.2 kg  170 lb
           810036380058 DCSB4848-05   48″ x 48″ / 1220 x 1220 mm  5000 lb x 1 lb / 2500 kg x 0.5 kg   320 lb
           810036380072 DCSB5959-05   59″ x 59″ / 1500 x 1500 mm  5000 lb x 1 lb / 2500 kg x 0.5 kg   495 lb
           810036380065 DCSB4848-10   48″ x 48″ / 1220 x 1220 mm  10,000 lb x 2 lb / 5000 kg x 1 kg   315 lb
           810036380089 DCSB5959-10   59″ x 59″ / 1500 x 1500 mm  10,000 lb x 2 lb / 5000 kg x 1 kg  475 lb
          Note: Multiple packs of five+ are available upon request.
