Applications                                                                             Indicators
             Light Industrial        Warehouse
             Shipping

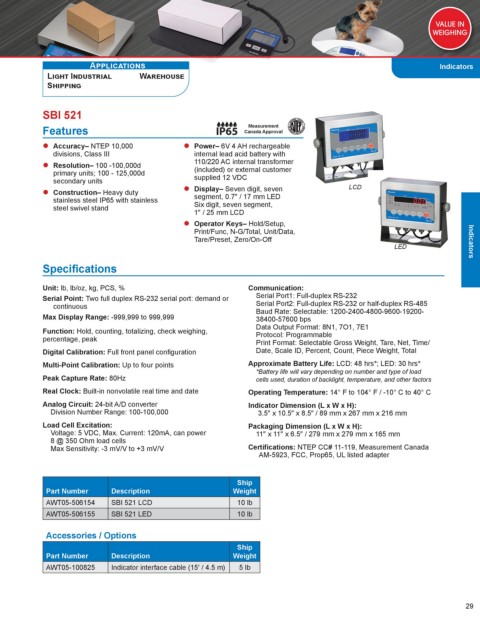

            SBI 521

                                                                Measurement
            Features                                           Canada Approval
              Accuracy– NTEP 10,000             Power– 6V 4 AH rechargeable
               divisions, Class III                internal lead acid battery with
              Resolution– 100 -100,000d           110/220 AC internal transformer
                                                   (included) or external customer
               primary units; 100 - 125,000d       supplied 12 VDC
               secondary units
             Construction– Heavy duty           Display– Seven digit, seven             LCD
               stainless steel IP65 with stainless   segment, 0.7″ / 17 mm LED
               steel swivel stand                  Six digit, seven segment,
                                                   1″ / 25 mm LCD
                                                 Operator Keys– Hold/Setup,
                                                   Print/Func, N-G/Total, Unit/Data,
                                                   Tare/Preset, Zero/On-Off                                              Indicators
                                                                                                      LED

            Specifications

            Unit: lb, lb/oz, kg, PCS, %                         Communication:
            Serial Point: Two full duplex RS-232 serial port: demand or     Serial Port1: Full-duplex RS-232
               continuous                                         Serial Port2: Full-duplex RS-232 or half-duplex RS-485
                                                                  Baud Rate: Selectable: 1200-2400-4800-9600-19200-
            Max Display Range: -999,999 to 999,999                38400-57600 bps
                                                                  Data Output Format: 8N1, 7O1, 7E1
            Function: Hold, counting, totalizing, check weighing,     Protocol: Programmable
            percentage, peak                                      Print Format: Selectable Gross Weight, Tare, Net, Time/
            Digital Calibration: Full front panel configuration    Date, Scale ID, Percent, Count, Piece Weight, Total
            Multi-Point Calibration: Up to four points          Approximate Battery Life: LCD: 48 hrs*; LED: 30 hrs*
                                                                  *Battery life will vary depending on number and type of load
            Peak Capture Rate: 80Hz                               cells used, duration of backlight, temperature, and other factors
            Real Clock: Built-in nonvolatile real time and date  Operating Temperature: 14° F to 104° F / -10° C to 40° C
            Analog Circuit: 24-bit A/D converter                Indicator Dimension (L x W x H):
              Division Number Range: 100-100,000                   3.5″ x 10.5″ x 8.5″ / 89 mm x 267 mm x 216 mm
            Load Cell Excitation:                               Packaging Dimension (L x W x H):
              Voltage: 5 VDC, Max. Current: 120mA, can power      11″ x 11″ x 6.5″ / 279 mm x 279 mm x 165 mm
              8 @ 350 Ohm load cells
              Max Sensitivity: -3 mV/V to +3 mV/V               Certifications: NTEP CC# 11-119, Measurement Canada
                                                                   AM-5923, FCC, Prop65, UL listed adapter


                                                             Ship
             Part Number     Description                    Weight
             AWT05-506154    SBI 521 LCD                     10 lb
             AWT05-506155    SBI 521 LED                     10 lb

             Accessories / Options
                                                             Ship
             Part Number     Description                    Weight
             AWT05-100825    Indicator interface cable (15′ / 4.5 m)  5 lb
