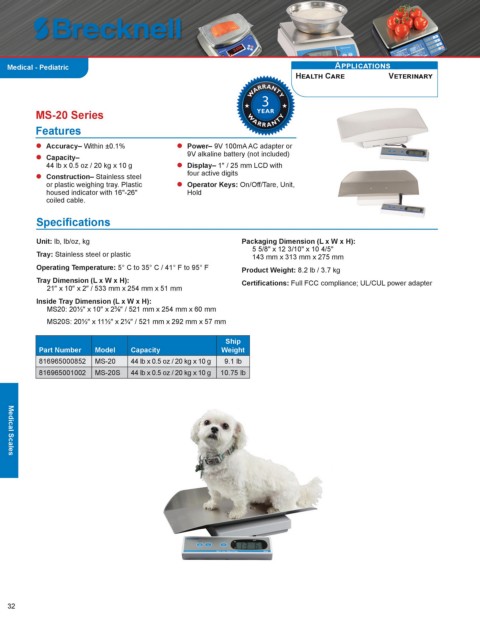

Page 32 - Brecknell_2025_product_guide_USA_L_501053.indd

Medical - Pediatric Applications
Health Care Veterinary

MS-20 Series

Features
 Accuracy– Within ±0.1%  Power– 9V 100mA AC adapter or
 Capacity– 9V alkaline battery (not included)
44 lb x 0.5 oz / 20 kg x 10 g  Display– 1″ / 25 mm LCD with
 Construction– Stainless steel four active digits
or plastic weighing tray. Plastic  Operator Keys: On/Off/Tare, Unit,
housed indicator with 16"-26" Hold
coiled cable.

Specifications

Unit: lb, lb/oz, kg Packaging Dimension (L x W x H):
5 5/8" x 12 3/10" x 10 4/5"
Tray: Stainless steel or plastic 143 mm x 313 mm x 275 mm
Operating Temperature: 5° C to 35° C / 41° F to 95° F Product Weight: 8.2 lb / 3.7 kg
Tray Dimension (L x W x H): Certifications: Full FCC compliance; UL/CUL power adapter
21″ x 10″ x 2″ / 533 mm x 254 mm x 51 mm
Inside Tray Dimension (L x W x H):
MS20: 20½″ x 10″ x 2⅜″ / 521 mm x 254 mm x 60 mm

MS20S: 20½″ x 11½″ x 2¼″ / 521 mm x 292 mm x 57 mm

Ship
Part Number Model Capacity Weight
816965000852 MS-20 44 lb x 0.5 oz / 20 kg x 10 g 9.1 lb
816965001002 MS-20S 44 lb x 0.5 oz / 20 kg x 10 g 10.75 lb

Medical Scales

32
