Medical - Physician Applications
Health Care Health Clubs

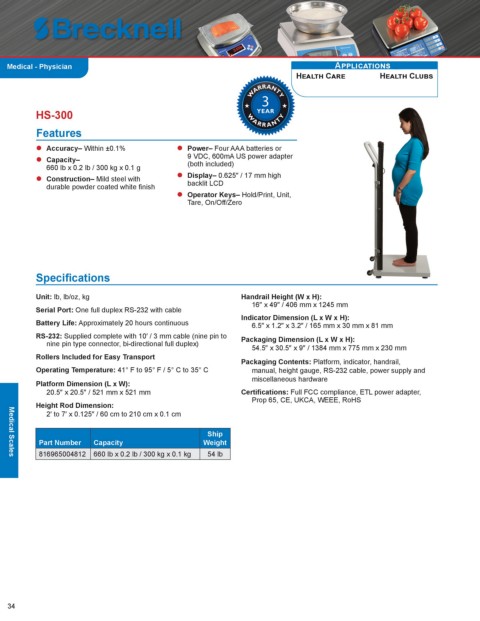

HS-300

Features

 Accuracy– Within ±0.1%  Power– Four AAA batteries or
 Capacity– 9 VDC, 600mA US power adapter
(both included)
660 lb x 0.2 lb / 300 kg x 0.1 g
 Construction– Mild steel with  Display– 0.625″ / 17 mm high
durable powder coated white finish backlit LCD
 Operator Keys– Hold/Print, Unit,
Tare, On/Off/Zero

Specifications

Unit: lb, lb/oz, kg Handrail Height (W x H):
16″ x 49″ / 406 mm x 1245 mm
Serial Port: One full duplex RS-232 with cable
Indicator Dimension (L x W x H):
Battery Life: Approximately 20 hours continuous 6.5″ x 1.2″ x 3.2″ / 165 mm x 30 mm x 81 mm
RS-232: Supplied complete with 10′ / 3 mm cable (nine pin to Packaging Dimension (L x W x H):
nine pin type connector, bi-directional full duplex)
54.5″ x 30.5″ x 9″ / 1384 mm x 775 mm x 230 mm
Rollers Included for Easy Transport
Packaging Contents: Platform, indicator, handrail,
Operating Temperature: 41° F to 95° F / 5° C to 35° C manual, height gauge, RS-232 cable, power supply and
miscellaneous hardware
Platform Dimension (L x W):
20.5″ x 20.5″ / 521 mm x 521 mm Certifications: Full FCC compliance, ETL power adapter,
Prop 65, CE, UKCA, WEEE, RoHS
Height Rod Dimension:
2′ to 7′ x 0.125″ / 60 cm to 210 cm x 0.1 cm

Ship
Part Number Capacity Weight
816965004812 660 lb x 0.2 lb / 300 kg x 0.1 kg 54 lb
Medical Scales
