Applications Medical - Bariatric
Assisted Living Health Care

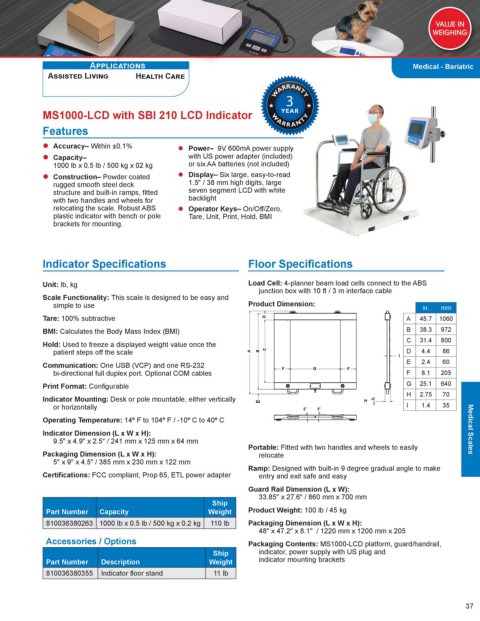

MS1000-LCD with SBI 210 LCD Indicator

Features
 Accuracy– Within ±0.1%  Power– 9V 600mA power supply
 Capacity– with US power adapter (included)
1000 lb x 0.5 lb / 500 kg x 02 kg or six AA batteries (not included)
 Construction– Powder coated  Display– Six large, easy-to-read
rugged smooth steel deck 1.5″ / 38 mm high digits, large
structure and built-in ramps, fitted seven segment LCD with white
with two handles and wheels for backlight
relocating the scale. Robust ABS  Operator Keys– On/Off/Zero,
plastic indicator with bench or pole Tare, Unit, Print, Hold, BMI
brackets for mounting.

Indicator Specifications Floor Specifications

Unit: lb, kg Load Cell: 4-planner beam load cells connect to the ABS
junction box with 10 ft / 3 m interface cable
Scale Functionality: This scale is designed to be easy and
simple to use Product Dimension: in. mm
Tare: 100% subtractive D D A 45.7 1060
BMI: Calculates the Body Mass Index (BMI) B 38.3 972
Hold: Used to freeze a displayed weight value once the C 31.4 800
patient steps off the scale A A B B C C I I D 4.4 86

Communication: One USB (VCP) and one RS-232 F F G G F F E 2.4 60
bi-directional full duplex port. Optional COM cables F 8.1 205
Print Format: Configurable G 25.1 640
H 2.75 70
Indicator Mounting: Desk or pole mountable, either vertically E E H H +5 5
+

or horizontally 9 9° ° 9 9° ° 0 0 I 1.4 35
Operating Temperature: 14º F to 104º F / -10º C to 40º C
Indicator Dimension (L x W x H): Medical Scales
9.5″ x 4.9″ x 2.5″ / 241 mm x 125 mm x 64 mm
Portable: Fitted with two handles and wheels to easily
Packaging Dimension (L x W x H): relocate
5″ x 9″ x 4.5″ / 385 mm x 230 mm x 122 mm
Ramp: Designed with built-in 9 degree gradual angle to make
Certifications: FCC compliant, Prop 65, ETL power adapter entry and exit safe and easy
Guard Rail Dimension (L x W):
33.85″ x 27.6″ / 860 mm x 700 mm
Ship
Part Number Capacity Weight Product Weight: 100 lb / 45 kg
810036380263 1000 lb x 0.5 lb / 500 kg x 0.2 kg 110 lb Packaging Dimension (L x W x H):
48″ x 47.2″ x 8.1" / 1220 mm x 1200 mm x 205
Accessories / Options Packaging Contents: MS1000-LCD platform, guard/handrail,

Ship indicator, power supply with US plug and
Part Number Description Weight indicator mounting brackets
810036380355 Indicator floor stand 11 lb
