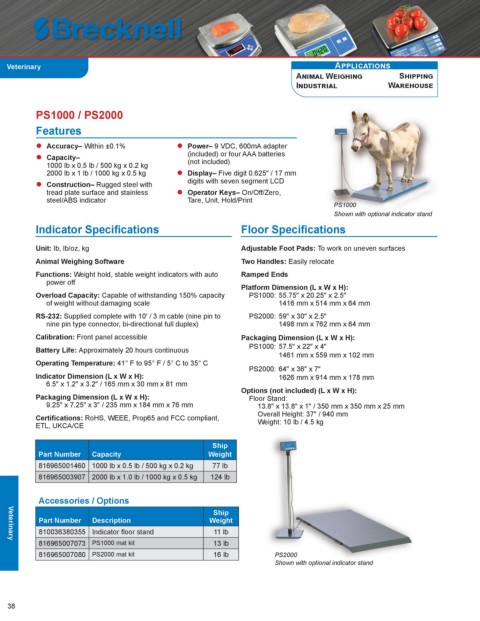

Page 38 - Brecknell_2025_product_guide_USA_L_501053.indd
P. 38

Veterinary                                                                         Applications
                                                                             Animal Weighing           Shipping
                                                                             Industrial             Warehouse


          PS1000 / PS2000

          Features
            Accuracy– Within ±0.1%            Power– 9 VDC, 600mA adapter
           Capacity–                            (included) or four AAA batteries
                                                 (not included)
             1000 lb x 0.5 lb / 500 kg x 0.2 kg
             2000 lb x 1 lb / 1000 kg x 0.5 kg    Display– Five digit 0.625″ / 17 mm
           Construction– Rugged steel with      digits with seven segment LCD
             tread plate surface and stainless    Operator Keys– On/Off/Zero,
             steel/ABS indicator                 Tare, Unit, Hold/Print
                                                                                      PS1000
                                                                                      Shown with optional indicator stand
          Indicator Specifications                             Floor Specifications


          Unit: lb, lb/oz, kg                                  Adjustable Foot Pads: To work on uneven surfaces
          Animal Weighing Software                             Two Handles: Easily relocate
          Functions: Weight hold, stable weight indicators with auto   Ramped Ends
             power off
                                                               Platform Dimension (L x W x H):
          Overload Capacity: Capable of withstanding 150% capacity     PS1000:  55.75″ x 20.25″ x 2.5″
             of weight without damaging scale                           1416 mm x 514 mm x 64 mm
          RS-232: Supplied complete with 10′ / 3 m cable (nine pin to     PS2000: 59″ x 30″ x 2.5″
             nine pin type connector, bi-directional full duplex)         1498 mm x 762 mm x 64 mm
          Calibration: Front panel accessible                  Packaging Dimension (L x W x H):
          Battery Life: Approximately 20 hours continuous        PS1000:  57.5″ x 22″ x 4″
                                                                        1461 mm x 559 mm x 102 mm
          Operating Temperature: 41° F to 95° F / 5° C to 35° C
                                                                 PS2000: 64″ x 36″ x 7″
          Indicator Dimension (L x W x H):                              1626 mm x 914 mm x 178 mm
             6.5″ x 1.2″ x 3.2″ / 165 mm x 30 mm x 81 mm
                                                               Options (not included) (L x W x H):
          Packaging Dimension (L x W x H):                       Floor Stand:
             9.25″ x 7.25″ x 3″ / 235 mm x 184 mm x 76 mm          13.8″ x 13.8″ x 1″ / 350 mm x 350 mm x 25 mm
                                                                   Overall Height: 37″ / 940 mm
          Certifications: RoHS, WEEE, Prop65 and FCC compliant,       Weight: 10 lb / 4.5 kg
          ETL, UKCA/CE

                                                       Ship
           Part Number   Capacity                     Weight
           816965001460 1000 lb x 0.5 lb / 500 kg x 0.2 kg  77 lb
           816965003907 2000 lb x 1.0 lb / 1000 kg x 0.5 kg  124 lb


           Accessories / Options
                                                       Ship
           Part Number  Description                   Weight
           810036380355 Indicator floor stand          11 lb
           816965007073  PS1000 mat kit                13 lb
   Veterinary
           816965007080  PS2000 mat kit                16 lb           PS2000
                                                                       Shown with optional indicator stand
