Applications                                                                             Veterinary
             Animal Weighing           Shipping
             Industrial              Warehouse

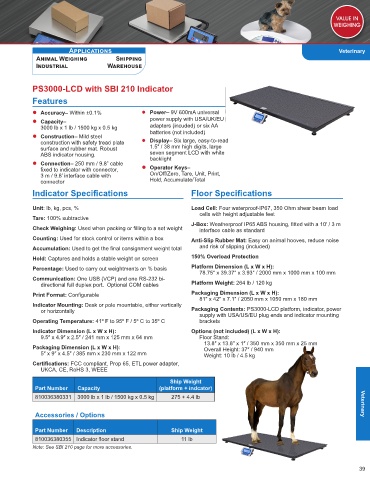

            PS3000-LCD with SBI 210 Indicator

            Features
              Accuracy– Within ±0.1%            Power– 9V 600mA universal
             Capacity–                            power supply with USA/UK/EU
              3000 lb x 1 lb / 1500 kg x 0.5 kg    adapters (incuded) or six AA
             Construction– Mild steel             batteries (not included)
              construction with safety tread plate    Display– Six large, easy-to-read
              surface and rubber mat. Robust       1.5″ / 38 mm high digits, large
              ABS indicator housing.               seven segment LCD with white
                                                   backlight
             Connection– 250 mm / 9.8” cable
              fixed to indicator with connector,    Operator Keys–
              3 m / 9.8’ interface cable with      On/Off/Zero, Tare, Unit, Print,
              connector                            Hold, Accumulate/Total
            Indicator Specifications                            Floor Specifications

            Unit: lb, kg, pcs, %                                Load Cell: Four waterproof-IP67, 350 Ohm shear beam load
                                                                   cells with height adjustable feet
            Tare: 100% subtractive
                                                                J-Box: Weatherproof IP65 ABS housing, fitted with a 10' / 3 m
            Check Weighing: Used when packing or filling to a set weight  interface cable as standard
            Counting: Used for stock control or items within a box  Anti-Slip Rubber Mat: Easy on animal hooves, reduce noise
            Accumulation: Used to get the final consignment weight total  and risk of slipping (included)
            Hold: Captures and holds a stable weight on screen  150% Overload Protection

            Percentage: Used to carry out weightments on % basis  Platform Dimension (L x W x H):
                                                                   78.75″ x 39.37″ x 3.93″ / 2000 mm x 1000 mm x 100 mm
            Communication: One USB (VCP) and one RS-232 bi-
               directional full duplex port.  Optional COM cables  Platform Weight: 264 lb / 120 kg
            Print Format: Configurable                          Packaging Dimension (L x W x H):
                                                                   81" x 42" x 7.1" / 2050 mm x 1050 mm x 180 mm
            Indicator Mounting: Desk or pole mountable, either vertically
               or horizontally                                  Packaging Contents: PS3000-LCD platform, indicator, power
                                                                   supply with USA/US/EU plug ends and indicator mounting
            Operating Temperature: 41º F to 95º F / 5º C to 35º C  brackets
            Indicator Dimension (L x W x H):                    Options (not included) (L x W x H):
               9.5″ x 4.9″ x 2.5″ / 241 mm x 125 mm x 64 mm        Floor Stand:
                                                                     13.8″ x 13.8″ x 1″ / 350 mm x 350 mm x 25 mm
            Packaging Dimension (L x W x H):                         Overall Height: 37″ / 940 mm
               5″ x 9″ x 4.5″ / 385 mm x 230 mm x 122 mm             Weight: 10 lb / 4.5 kg
            Certifications: FCC compliant, Prop 65, ETL power adapter,
               UKCA, CE, RoHS 3, WEEE
                                                         Ship Weight
             Part Number   Capacity                   (platform + indcator)
             810036380331  3000 lb x 1 lb / 1500 kg x 0.5 kg   275 + 4.4 lb                                              Veterinary


             Accessories / Options

             Part Number  Description                     Ship Weight
             810036380355 Indicator floor stand              11 lb
            Note: See SBI 210 page for more accessories.
