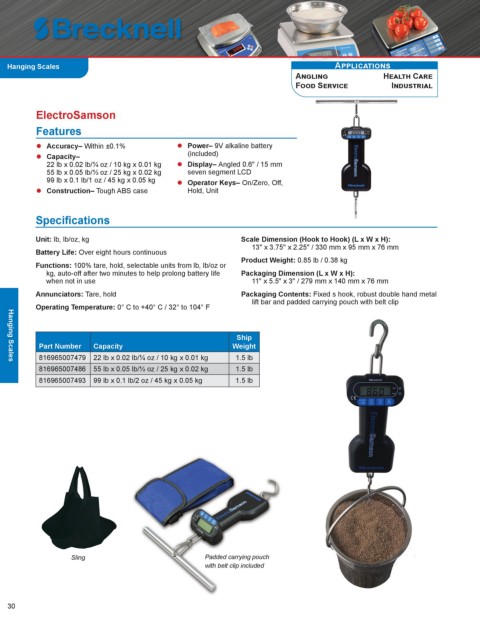

Page 30 - Brecknell_2025_product_guide_USA_L_501053.indd

Hanging Scales Applications
Angling Health Care
Food Service Industrial

ElectroSamson

Features
 Accuracy– Within ±0.1%  Power– 9V alkaline battery
 Capacity– (included)
22 lb x 0.02 lb/¼ oz / 10 kg x 0.01 kg  Display– Angled 0.6″ / 15 mm
55 lb x 0.05 lb/½ oz / 25 kg x 0.02 kg seven segment LCD
99 lb x 0.1 lb/1 oz / 45 kg x 0.05 kg  Operator Keys– On/Zero, Off,
 Construction– Tough ABS case Hold, Unit

Specifications

Unit: lb, lb/oz, kg Scale Dimension (Hook to Hook) (L x W x H):
13" x 3.75" x 2.25" / 330 mm x 95 mm x 76 mm
Battery Life: Over eight hours continuous
Product Weight: 0.85 lb / 0.38 kg
Functions: 100% tare, hold, selectable units from lb, lb/oz or
kg, auto-off after two minutes to help prolong battery life Packaging Dimension (L x W x H):
when not in use 11″ x 5.5″ x 3″ / 279 mm x 140 mm x 76 mm
Annunciators: Tare, hold Packaging Contents: Fixed s hook, robust double hand metal
lift bar and padded carrying pouch with belt clip
Operating Temperature: 0° C to +40° C / 32° to 104° F

Ship
Part Number Capacity Weight
816965007479 22 lb x 0.02 lb/¼ oz / 10 kg x 0.01 kg 1.5 lb
Hanging Scales
816965007486 55 lb x 0.05 lb/½ oz / 25 kg x 0.02 kg 1.5 lb
816965007493 99 lb x 0.1 lb/2 oz / 45 kg x 0.05 kg 1.5 lb

Sling Padded carrying pouch
with belt clip included
