Applications                                                                           Floor Scales
             Light Industrial          Shipping
             Livestock               Warehouse

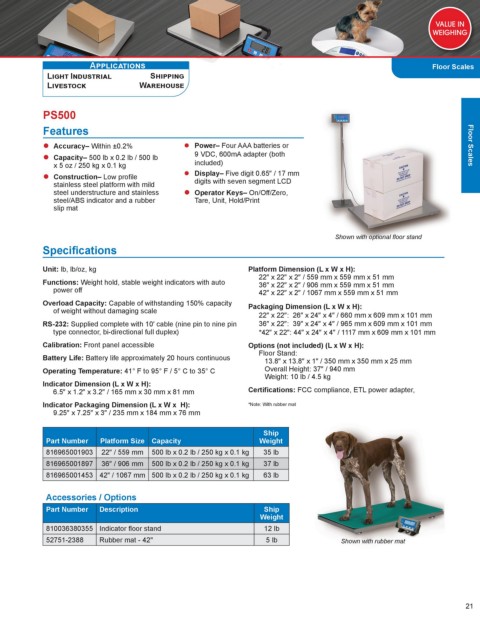

            PS500

            Features
              Accuracy– Within ±0.2%            Power– Four AAA batteries or                                           Floor Scales
             Capacity– 500 lb x 0.2 lb / 500 lb   9 VDC, 600mA adapter (both
               x 5 oz / 250 kg x 0.1 kg            included)
             Construction– Low profile          Display– Five digit 0.65″ / 17 mm
               stainless steel platform with mild   digits with seven segment LCD
               steel understructure and stainless    Operator Keys– On/Off/Zero,
               steel/ABS indicator and a rubber    Tare, Unit, Hold/Print
               slip mat



                                                                                      Shown with optional floor stand
            Specifications

            Unit: lb, lb/oz, kg                                 Platform Dimension (L x W x H):
                                                                   22″ x 22″ x 2″ / 559 mm x 559 mm x 51 mm
            Functions: Weight hold, stable weight indicators with auto   36″ x 22″ x 2″ / 906 mm x 559 mm x 51 mm
               power off                                           42″ x 22″ x 2″ / 1067 mm x 559 mm x 51 mm
            Overload Capacity: Capable of withstanding 150% capacity   Packaging Dimension (L x W x H):
               of weight without damaging scale
                                                                   22″ x 22″:  26″ x 24″ x 4″ / 660 mm x 609 mm x 101 mm
            RS-232: Supplied complete with 10′ cable (nine pin to nine pin   36″ x 22″:  39″ x 24″ x 4″ / 965 mm x 609 mm x 101 mm
               type connector, bi-directional full duplex)         *42″ x 22″: 44″ x 24″ x 4″ / 1117 mm x 609 mm x 101 mm
            Calibration: Front panel accessible                 Options (not included) (L x W x H):
            Battery Life: Battery life approximately 20 hours continuous  Floor Stand:
                                                                     13.8″ x 13.8″ x 1″ / 350 mm x 350 mm x 25 mm
            Operating Temperature: 41° F to 95° F / 5° C to 35° C     Overall Height: 37″ / 940 mm
                                                                     Weight: 10 lb / 4.5 kg
            Indicator Dimension (L x W x H):
               6.5″ x 1.2″ x 3.2″ / 165 mm x 30 mm x 81 mm      Certifications: FCC compliance, ETL power adapter,
            Indicator Packaging Dimension (L x W x  H):         *Note: With rubber mat
               9.25″ x 7.25″ x 3″ / 235 mm x 184 mm x 76 mm

                                                                    Ship
             Part Number   Platform Size Capacity                  Weight
             816965001903  22″ / 559 mm  500 lb x 0.2 lb / 250 kg x 0.1 kg  35 lb
             816965001897  36″ / 906 mm  500 lb x 0.2 lb / 250 kg x 0.1 kg  37 lb
             816965001453 42″ / 1067 mm  500 lb x 0.2 lb / 250 kg x 0.1 kg   63 lb

             Accessories / Options
             Part Number  Description                               Ship
                                                                   Weight
             810036380355 Indicator floor stand                     12 lb
             52751-2388   Rubber mat - 42"                           5 lb               Shown with rubber mat
