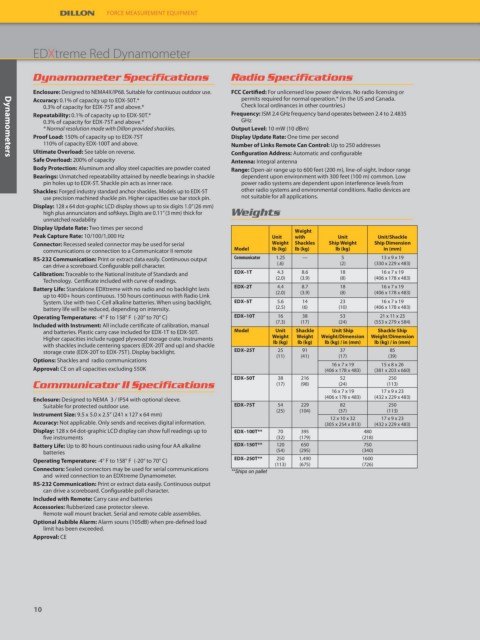

Page 12 - Dillon_2024 Catalog_501427.indd

FORCE MEASUREMENT EQUIPMENT

EDXtreme Red Dynamometer

Dynamometer Specifications Radio Specifications

Enclosure: Designed to NEMA4X/IP68. Suitable for continuous outdoor use. FCC Certified: For unlicensed low power devices. No radio licensing or
Accuracy: 0.1% of capacity up to EDX-50T.* permits required for normal operation.* (In the US and Canada.
0.3% of capacity for EDX-75T and above.* Check local ordinances in other countries.)
Repeatability: 0.1% of capacity up to EDX-50T.* Frequency: ISM 2.4 GHz frequency band operates between 2.4 to 2.4835
0.3% of capacity for EDX-75T and above.* GHz
* Normal resolution mode with Dillon provided shackles. Output Level: 10 mW (10 dBm)
Proof Load: 150% of capacity up to EDX-75T Display Update Rate: One time per second
110% of capacity EDX-100T and above. Number of Links Remote Can Control: Up to 250 addresses
Ultimate Overload: See table on reverse. Configuration Address: Automatic and configurable
Safe Overload: 200% of capacity Antenna: Integral antenna
Dynamometers
Dynamometers
Body Protection: Aluminum and alloy steel capacities are powder coated Range: Open-air range up to 600 feet (200 m), line-of-sight. Indoor range
Bearings: Unmatched repeatability attained by needle bearings in shackle dependent upon environment with 300 feet (100 m) common. Low
pin holes up to EDX-5T. Shackle pin acts as inner race. power radio systems are dependent upon interference levels from
Shackles: Forged industry standard anchor shackles. Models up to EDX-5T other radio systems and environmental conditions. Radio devices are
use precision machined shackle pin. Higher capacities use bar stock pin. not suitable for all applications.
Display: 128 x 64 dot-graphic LCD display shows up to six digits 1.0” (26 mm)
high plus annunciators and softkeys. Digits are 0.11” (3 mm) thick for Weights
unmatched readability
Display Update Rate: Two times per second Weight
Peak Capture Rate: 10/100/1,000 Hz Unit with Unit Unit/Shackle
Connector: Recessed sealed connector may be used for serial Weight Shackles Ship Weight Ship Dimension
communications or connection to a Communicator II remote Model lb (kg) lb (kg) lb (kg) in (mm)
RS-232 Communication: Print or extract data easily. Continuous output Communicator 1.25 — 5 13 x 9 x 19
can drive a scoreboard. Configurable poll character. (.6) (2) (330 x 229 x 483)
Calibration: Traceable to the National Institute of Standards and EDX–1T 4.3 8.6 18 16 x 7 x 19
Technology. Certificate included with curve of readings. (2.0) (3.9) (8) (406 x 178 x 483)
8.7
4.4
16 x 7 x 19
Battery Life: Standalone EDXtreme with no radio and no backlight lasts EDX–2T (2.0) (3.9) 18 (406 x 178 x 483)
(8)
up to 400+ hours continuous. 150 hours continuous with Radio Link
System. Use with two C-Cell alkaline batteries. When using backlight, EDX–5T 5.6 14 23 16 x 7 x 19
battery life will be reduced, depending on intensity. (2.5) (6) (10) (406 x 178 x 483)
Operating Temperature: -4° F to 158° F (-20° to 70° C) EDX–10T 16 38 53 21 x 11 x 23
Included with Instrument: All include certificate of calibration, manual (7.3) (17) (24) (553 x 279 x 584)
and batteries. Plastic carry case included for EDX-1T to EDX-50T. Model Unit Shackle Unit Ship Shackle Ship
Higher capacities include rugged plywood storage crate. Instruments Weight Weight Weight/Dimension Weight/Dimension
lb (kg)
lb (kg) / in (mm)
lb (kg) / in (mm)
lb (kg)
with shackles include centering spacers (EDX-20T and up) and shackle
37
85
91
25
storage crate (EDX-20T to EDX-75T). Display backlight. EDX–25T (11) (41) (17) (39)
Options: Shackles and radio communications
16 x 7 x 19 15 x 8 x 26
Approval: CE on all capacities excluding 550K (406 x 178 x 483) (381 x 203 x 660)
EDX–50T 38 216 52 250
Communicator II Specifications (17) (98) (24) (113)
16 x 7 x 19 17 x 9 x 23
Enclosure: Designed to NEMA 3 / IP54 with optional sleeve. (406 x 178 x 483) (432 x 229 x 483)
Suitable for protected outdoor use. EDX–75T 54 229 82 250
(113)
(37)
Instrument Size: 9.5 x 5.0 x 2.5” (241 x 127 x 64 mm) (25) (104) 12 x 10 x 32 17 x 9 x 23
Accuracy: Not applicable. Only sends and receives digital information. (305 x 254 x 813) (432 x 229 x 483)
Display: 128 x 64 dot-graphic LCD display can show full readings up to EDX–100T** 70 395 480
five instruments (32) (179) (218)
Battery Life: Up to 80 hours continuous radio using four AA alkaline EDX–150T** 120 650 750
batteries (54) (295) (340)
250
Operating Temperature: -4° F to 158° F (-20° to 70° C) EDX–250T** (113) 1,490 1600
(726)
(675)
Connectors: Sealed connectors may be used for serial communications **Ships on pallet
and wired connection to an EDXtreme Dynamometer.
RS-232 Communication: Print or extract data easily. Continuous output
can drive a scoreboard. Configurable poll character.
Included with Remote: Carry case and batteries
Accessories: Rubberized case protector sleeve.
Remote wall mount bracket. Serial and remote cable assemblies.
Optional Aubible Alarm: Alarm souns (105dB) when pre-defined load
limit has been exceeded.
Approval: CE
