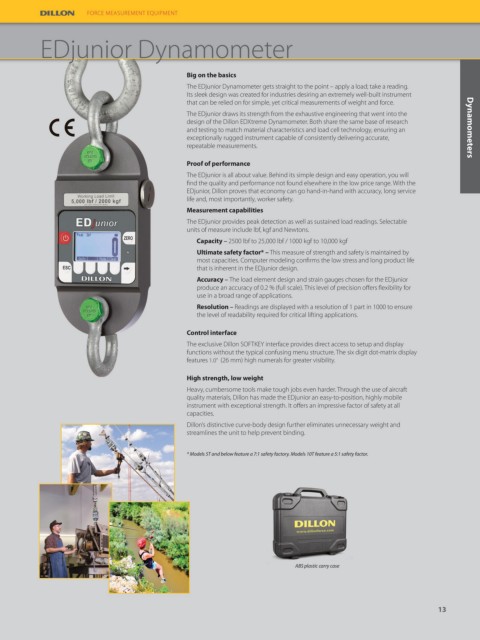

EDjunior Dynamometer

Big on the basics
The EDjunior Dynamometer gets straight to the point – apply a load; take a reading.
Its sleek design was created for industries desiring an extremely well-built instrument
that can be relied on for simple, yet critical measurements of weight and force.
The EDjunior draws its strength from the exhaustive engineering that went into the
design of the Dillon EDXtreme Dynamometer. Both share the same base of research
and testing to match material characteristics and load cell technology, ensuring an Dynamometers
exceptionally rugged instrument capable of consistently delivering accurate,
repeatable measurements.

Proof of performance
The EDjunior is all about value. Behind its simple design and easy operation, you will
find the quality and performance not found elsewhere in the low price range. With the
EDjunior, Dillon proves that economy can go hand-in-hand with accuracy, long service
life and, most importantly, worker safety.
Measurement capabilities
The EDjunior provides peak detection as well as sustained load readings. Selectable
units of measure include lbf, kgf and Newtons.
Capacity – 2500 lbf to 25,000 lbf / 1000 kgf to 10,000 kgf
Ultimate safety factor* – This measure of strength and safety is maintained by
most capacities. Computer modeling confirms the low stress and long product life
that is inherent in the EDjunior design.
Accuracy – The load element design and strain gauges chosen for the EDjunior
produce an accuracy of 0.2 % (full scale). This level of precision offers flexibility for
use in a broad range of applications.
Resolution – Readings are displayed with a resolution of 1 part in 1000 to ensure
the level of readability required for critical lifting applications.

Control interface
The exclusive Dillon SOFTKEY interface provides direct access to setup and display
functions without the typical confusing menu structure. The six digit dot-matrix display
features 1.0” (26 mm) high numerals for greater visibility.

High strength, low weight
Heavy, cumbersome tools make tough jobs even harder. Through the use of aircraft
quality materials, Dillon has made the EDjunior an easy-to-position, highly mobile
instrument with exceptional strength. It offers an impressive factor of safety at all
capacities.
Dillon’s distinctive curve-body design further eliminates unnecessary weight and
streamlines the unit to help prevent binding.

* Models 5T and below feature a 7:1 safety factory. Models 10T feature a 5:1 safety factor.

ABS plastic carry case
