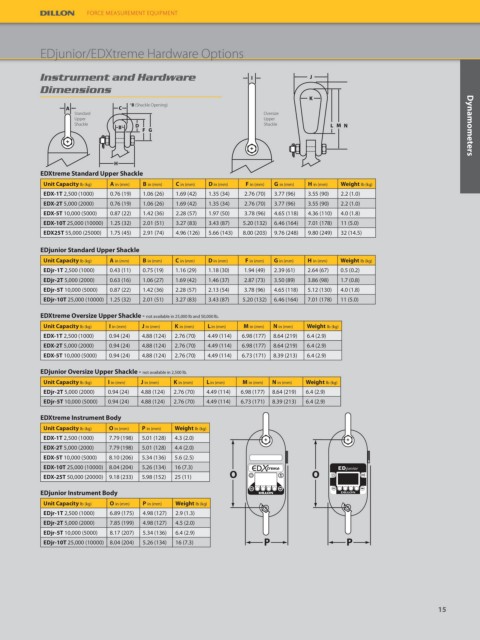

EDjunior/EDXtreme Hardware Options

Instrument and Hardware
Dimensions

*B (Shackle Opening)
Standard Oversize
Upper Upper
Shackle Shackle
* Dynamometers

EDXtreme Standard Upper Shackle
Unit Capacity lb (kg) A in (mm) B in (mm) C in (mm) D in (mm) F in (mm) G in (mm) H in (mm) Weight lb (kg)
EDX-1T 2,500 (1000) 0.76 (19) 1.06 (26) 1.69 (42) 1.35 (34) 2.76 (70) 3.77 (96) 3.55 (90) 2.2 (1.0)
EDX-2T 5,000 (2000) 0.76 (19) 1.06 (26) 1.69 (42) 1.35 (34) 2.76 (70) 3.77 (96) 3.55 (90) 2.2 (1.0)
EDX-5T 10,000 (5000) 0.87 (22) 1.42 (36) 2.28 (57) 1.97 (50) 3.78 (96) 4.65 (118) 4.36 (110) 4.0 (1.8)
EDX-10T 25,000 (10000) 1.25 (32) 2.01 (51) 3.27 (83) 3.43 (87) 5.20 (132) 6.46 (164) 7.01 (178) 11 (5.0)
EDX25T 55,000 (25000) 1.75 (45) 2.91 (74) 4.96 (126) 5.66 (143) 8.00 (203) 9.76 (248) 9.80 (249) 32 (14.5)

EDjunior Standard Upper Shackle
Unit Capacity lb (kg) A in (mm) B in (mm) C in (mm) D in (mm) F in (mm) G in (mm) H in (mm) Weight lb (kg)
EDjr-1T 2,500 (1000) 0.43 (11) 0.75 (19) 1.16 (29) 1.18 (30) 1.94 (49) 2.39 (61) 2.64 (67) 0.5 (0.2)
EDjr-2T 5,000 (2000) 0.63 (16) 1.06 (27) 1.69 (42) 1.46 (37) 2.87 (73) 3.50 (89) 3.86 (98) 1.7 (0.8)
EDjr-5T 10,000 (5000) 0.87 (22) 1.42 (36) 2.28 (57) 2.13 (54) 3.78 (96) 4.65 (118) 5.12 (130) 4.0 (1.8)
EDjr-10T 25,000 (10000) 1.25 (32) 2.01 (51) 3.27 (83) 3.43 (87) 5.20 (132) 6.46 (164) 7.01 (178) 11 (5.0)

EDXtreme Oversize Upper Shackle - not available in 25,000 lb and 50,000 lb.
Unit Capacity lb (kg) I in (mm) J in (mm) K in (mm) L in (mm) M in (mm) N in (mm) Weight lb (kg)
EDX-1T 2,500 (1000) 0.94 (24) 4.88 (124) 2.76 (70) 4.49 (114) 6.98 (177) 8.64 (219) 6.4 (2.9)
EDX-2T 5,000 (2000) 0.94 (24) 4.88 (124) 2.76 (70) 4.49 (114) 6.98 (177) 8.64 (219) 6.4 (2.9)
EDX-5T 10,000 (5000) 0.94 (24) 4.88 (124) 2.76 (70) 4.49 (114) 6.73 (171) 8.39 (213) 6.4 (2.9)

EDjunior Oversize Upper Shackle - not available in 2,500 lb.
Unit Capacity lb (kg) I in (mm) J in (mm) K in (mm) L in (mm) M in (mm) N in (mm) Weight lb (kg)
EDjr-2T 5,000 (2000) 0.94 (24) 4.88 (124) 2.76 (70) 4.49 (114) 6.98 (177) 8.64 (219) 6.4 (2.9)
EDjr-5T 10,000 (5000) 0.94 (24) 4.88 (124) 2.76 (70) 4.49 (114) 6.73 (171) 8.39 (213) 6.4 (2.9)

EDXtreme Instrument Body
Unit Capacity lb (kg) O in (mm) P in (mm) Weight lb (kg)
EDX-1T 2,500 (1000) 7.79 (198) 5.01 (128) 4.3 (2.0)
EDX-2T 5,000 (2000) 7.79 (198) 5.01 (128) 4.4 (2.0)
EDX-5T 10,000 (5000) 8.10 (206) 5.34 (136) 5.6 (2.5)
EDX-10T 25,000 (10000) 8.04 (204) 5.26 (134) 16 (7.3)
EDX-25T 50,000 (20000) 9.18 (233) 5.98 (152) 25 (11)

EDjunior Instrument Body
Unit Capacity lb (kg) O in (mm) P in (mm) Weight lb (kg)
EDjr-1T 2,500 (1000) 6.89 (175) 4.98 (127) 2.9 (1.3)
EDjr-2T 5,000 (2000) 7.85 (199) 4.98 (127) 4.5 (2.0)
EDjr-5T 10,000 (5000) 8.17 (207) 5.34 (136) 6.4 (2.9)
EDjr-10T 25,000 (10000) 8.04 (204) 5.26 (134) 16 (7.3)
