FORCE MEASUREMENT EQUIPMENT

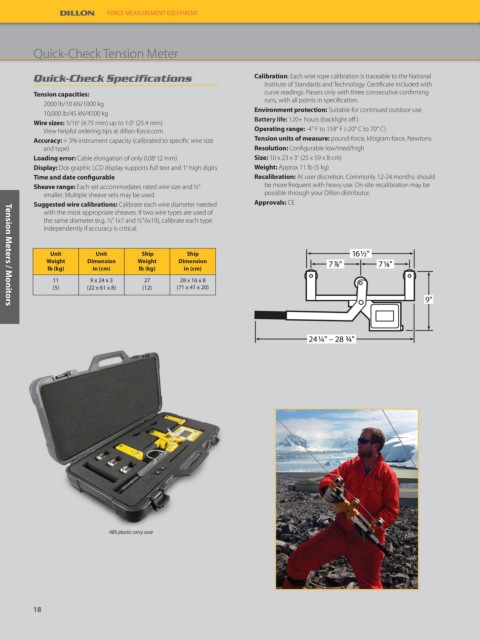

Quick-Check Tension Meter

Quick-Check Specifications Calibration: Each wire rope calibration is traceable to the National
Institute of Standards and Technology. Certificate included with
Tension capacities: curve readings. Passes only with three consecutive confirming
2000 lb/10 kN/1000 kg runs, with all points in specification.
10,000 lb/45 kN/4500 kg Environment protection: Suitable for continued outdoor use
Wire sizes: 3/16” (4.75 mm) up to 1.0” (25.4 mm) Battery life: 120+ hours (backlight off)
View helpful ordering tips at dillon-force.com Operating range: -4° F to 158° F (-20° C to 70° C)
Accuracy: + 3% instrument capacity (calibrated to specific wire size Tension units of measure: pound-force, kilogram force, Newtons
and type) Resolution: Configurable low/med/high
Loading error: Cable elongation of only 0.08” (2 mm) Size: 10 x 23 x 3” (25 x 59 x 8 cm)
Display: Dot-graphic LCD display supports full text and 1” high digits Weight: Approx 11 lb (5 kg)
Time and date configurable Recalibration: At user discretion. Commonly 12-24 months; should
Sheave range: Each set accommodates rated wire size and ½” be more frequent with heavy use. On-site recalibration may be
smaller. Multiple sheave sets may be used. possible through your Dillon distributor.
Suggested wire calibrations: Calibrate each wire diameter needed Approvals: CE
with the most appropriate sheaves. If two wire types are used of
the same diameter (e.g. ½” 1x7 and ½” 6x19), calibrate each type
independently if accuracy is critical.

Unit Unit Ship Ship
Weight Dimension Weight Dimension
lb (kg) in (cm) lb (kg) in (cm)
11 9 x 24 x 3 27 28 x 16 x 8
(5) (22 x 61 x 8) (12) (71 x 41 x 20)
9"
Tension Meters / Monitors

ABS plastic carry case
