FORCE MEASUREMENT EQUIPMENT

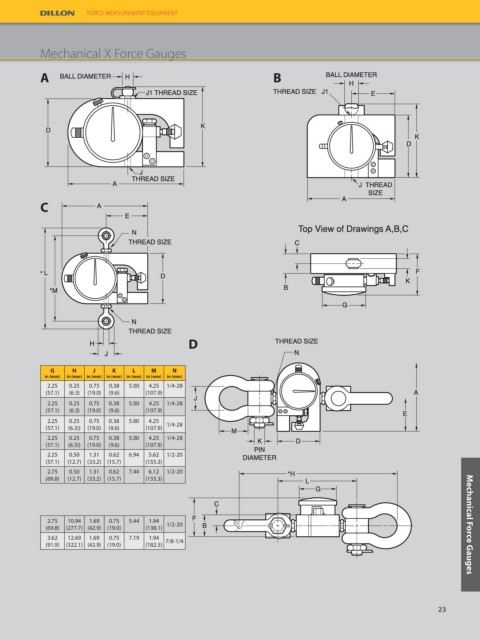

Mechanical X Force Gauges

A B

C

D

G H J K L M N
in (mm) in (mm) in (mm) in (mm) in (mm) in (mm) in (mm)
2.25 0.25 0.75 0.38 5.00 4.25 1/4-28
(57.1) (6.3) (19.0) (9.6) (107.9)
2.25 0.25 0.75 0.38 5.00 4.25 1/4-28
(57.1) (6.3) (19.0) (9.6) (107.9)
2.25 0.25 0.75 0.38 5.00 4.25
(57.1) (6.3)) (19.0) (9.6) (107.9) 1/4-28
2.25 0.25 0.75 0.38 5.00 4.25 1/4-28
(57.1) (6.3)) (19.0) (9.6) (107.9)
2.25 0.50 1.31 0.62 6.94 5.62 1/2-20
(57.1) (12.7) (33.2) (15.7) (155.3)
2.75 0.50 1.31 0.62 7.44 6.12 1/2-20
(69.8) (12.7) (33.2) (15.7) (155.3)

2.75 10.94 1.69 0.75 5.44 1.94
(69.8) (277.7) (42.9) (19.0) (138.1) 1/2-20 Mechanical Force Gauges
3.62 12.69 1.69 0.75 7.19 1.94
(91.9) (322.1) (42.9) (19.0) (182.5) 7/8-1/4
