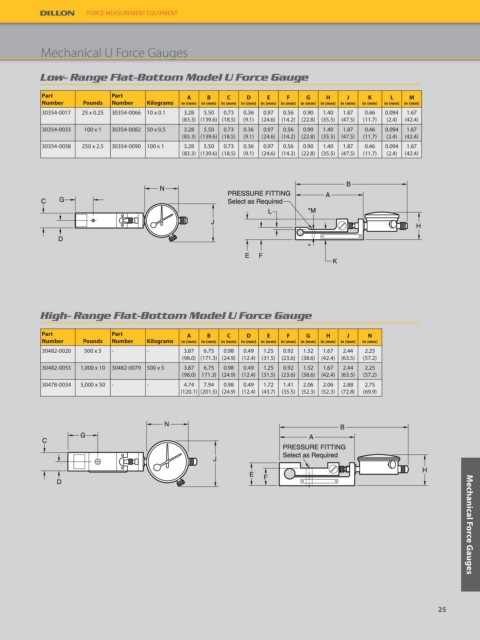

Page 27 - Dillon_2024 Catalog_501427.indd

FORCE MEASUREMENT EQUIPMENT

Mechanical U Force Gauges

Low- Range Flat-Bottom Model U Force Gauge

Part Part A B C D E F G H J K L M
Number Pounds Number Kilograms in (mm) in (mm) in (mm) in (mm) in (mm) in (mm) in (mm) in (mm) in (mm) in (mm) in (mm) in (mm)
30354-0017 25 x 0.25 30354-0066 10 x 0.1 3.28 5.50 0.73 0.36 0.97 0.56 0.90 1.40 1.87 0.46 0.094 1.67
(83.3) (139.6) (18.5) (9.1) (24.6) (14.2) (22.8) (35.5) (47.5) (11.7) (2.4) (42.4)
30354-0033 100 x 1 30354-0082 50 x 0.5 3.28 5.50 0.73 0.36 0.97 0.56 0.90 1.40 1.87 0.46 0.094 1.67
(83.3) (139.6) (18.5) (9.1) (24.6) (14.2) (22.8) (35.5) (47.5) (11.7) (2.4) (42.4)
30354-0058 250 x 2.5 30354-0090 100 x 1 3.28 5.50 0.73 0.36 0.97 0.56 0.90 1.40 1.87 0.46 0.094 1.67
(83.3) (139.6) (18.5) (9.1) (24.6) (14.2) (22.8) (35.5) (47.5) (11.7) (2.4) (42.4)

High- Range Flat-Bottom Model U Force Gauge

Part Part A B C D E F G H J N
Number Pounds Number Kilograms in (mm) in (mm) in (mm) in (mm) in (mm) in (mm) in (mm) in (mm) in (mm) in (mm)
30482-0020 500 x 5 - - 3.87 6.75 0.98 0.49 1.25 0.92 1.52 1.67 2.44 2.25
(98.0) (171.3) (24.9) (12.4) (31.5) (23.6) (38.6) (42.4) (63.5) (57.2)
30482-0053 1,000 x 10 30482-0079 500 x 5 3.87 6.75 0.98 0.49 1.25 0.92 1.52 1.67 2.44 2.25
(98.0) 171.3) (24.9) (12.4) (31.5) (23.6) (38.6) (42.4) (63.5) (57.2)
30478-0034 5,000 x 50 - - 4.74 7.94 0.98 0.49 1.72 1.41 2.06 2.06 2.88 2.75
(120.1) (201.5) (24.9) (12.4) (43.7) (35.5) (52.3) (52.3) (72.8) (69.9)

25 Mechanical Force Gauges
