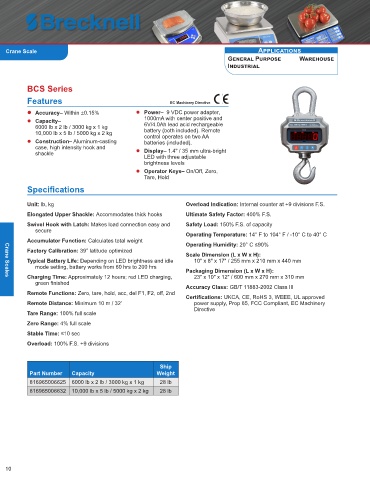

Page 10 - Brecknell_2025_product_guide_USA_L_501053.indd

Crane Scale Applications
General Purpose Warehouse
Industrial

BCS Series

Features EC Machinery Directive
 Accuracy– Within ±0.15%  Power– 9 VDC power adapter,
 Capacity– 1000mA with center positive and
6V/4.0Ah lead acid rechargeable
6000 lb x 2 lb / 3000 kg x 1 kg battery (both included). Remote
10,000 lb x 5 lb / 5000 kg x 2 kg control operates on two AA
 Construction– Aluminum-casting batteries (included).
case, high intensity hook and
shackle  Display– 1.4" / 35 mm ultra-bright
LED with three adjustable
brightness levels
 Operator Keys– On/Off, Zero,
Tare, Hold
Specifications

Unit: lb, kg Overload Indication: Internal counter at +9 divisions F.S.
Elongated Upper Shackle: Accommodates thick hooks Ultimate Safety Factor: 400% F.S.

Swivel Hook with Latch: Makes load connection easy and Safety Load: 150% F.S. of capacity
secure
Operating Temperature: 14° F to 104° F / -10° C to 40° C
Accumulator Function: Calculates total weight
Operating Humidity: 20° C ≤90%
Factory Calibration: 39° latitude optimized
Scale Dimension (L x W x H):
Typical Battery Life: Depending on LED brightness and idle 10" x 8" x 17" / 255 mm x 210 mm x 440 mm
mode setting, battery works from 60 hrs to 200 hrs
Packaging Dimension (L x W x H):
Charging Time: Approximately 12 hours; red LED charging, 23" x 10" x 12" / 600 mm x 270 mm x 310 mm
Crane Scales
green finished
Accuracy Class: GB/T 11883-2002 Class III
Remote Functions: Zero, tare, hold, acc, del F1, F2, off, 2nd
Certifications: UKCA, CE, RoHS 3, WEEE, UL approved
Remote Distance: Minimum 10 m / 32′ power supply, Prop 65, FCC Compliant, EC Machinery
Directive
Tare Range: 100% full scale
Zero Range: 4% full scale
Stable Time: ≤10 sec
Overload: 100% F.S. +9 divisions

Ship
Part Number Capacity Weight
816965006625 6000 lb x 2 lb / 3000 kg x 1 kg 28 lb
816965006632 10,000 lb x 5 lb / 5000 kg x 2 kg 28 lb
