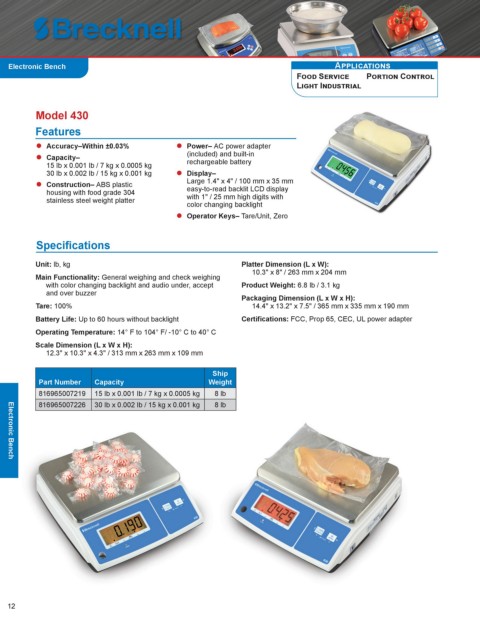

Page 12 - Brecknell_2025_product_guide_USA_L_501053.indd

Electronic Bench Applications
Food Service Portion Control
Light Industrial

Model 430

Features
 Accuracy–Within ±0.03%  Power– AC power adapter
 Capacity– (included) and built-in
rechargeable battery
15 lb x 0.001 lb / 7 kg x 0.0005 kg
30 lb x 0.002 lb / 15 kg x 0.001 kg  Display–
 Construction– ABS plastic Large 1.4" x 4" / 100 mm x 35 mm
housing with food grade 304 easy-to-read backlit LCD display
stainless steel weight platter with 1" / 25 mm high digits with
color changing backlight
 Operator Keys– Tare/Unit, Zero

Specifications

Unit: lb, kg Platter Dimension (L x W):
10.3" x 8" / 263 mm x 204 mm
Main Functionality: General weighing and check weighing
with color changing backlight and audio under, accept Product Weight: 6.8 lb / 3.1 kg
and over buzzer
Packaging Dimension (L x W x H):
Tare: 100% 14.4" x 13.2" x 7.5" / 365 mm x 335 mm x 190 mm
Battery Life: Up to 60 hours without backlight Certifications: FCC, Prop 65, CEC, UL power adapter
Operating Temperature: 14° F to 104° F/ -10° C to 40° C
Scale Dimension (L x W x H):
12.3" x 10.3" x 4.3" / 313 mm x 263 mm x 109 mm

Ship
Part Number Capacity Weight
816965007219 15 lb x 0.001 lb / 7 kg x 0.0005 kg 8 lb
816965007226 30 lb x 0.002 lb / 15 kg x 0.001 kg 8 lb

Electronic Bench

12
