Applications Electronic Bench
Food Service Portion Control
Light Industrial

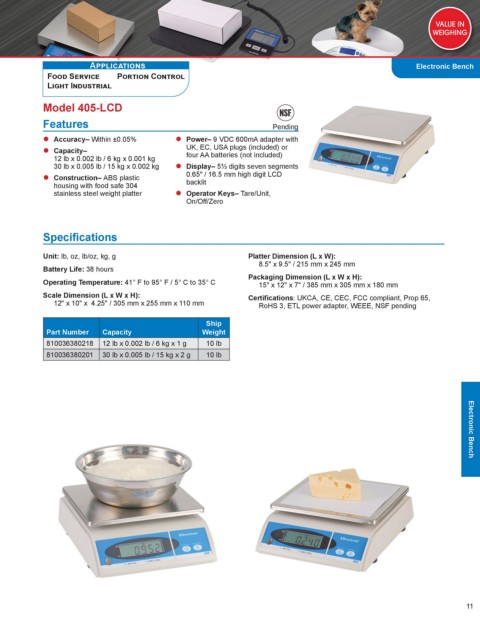

Model 405-LCD
®
Features Pending
COMPONENT
 Accuracy– Within ±0.05%  Power– 9 VDC 600mA adapter with
 Capacity– UK, EC, USA plugs (included) or
12 lb x 0.002 lb / 6 kg x 0.001 kg four AA batteries (not included)
30 lb x 0.005 lb / 15 kg x 0.002 kg  Display– 5½ digits seven segments
 Construction– ABS plastic 0.65" / 16.5 mm high digit LCD
backlit
housing with food safe 304
stainless steel weight platter  Operator Keys– Tare/Unit,
On/Off/Zero

Specifications

Unit: lb, oz, lb/oz, kg, g Platter Dimension (L x W):
8.5" x 9.5" / 215 mm x 245 mm
Battery Life: 38 hours
Packaging Dimension (L x W x H):
Operating Temperature: 41° F to 95° F / 5° C to 35° C 15" x 12" x 7" / 385 mm x 305 mm x 180 mm
Scale Dimension (L x W x H): Certifications: UKCA, CE, CEC, FCC compliant, Prop 65,
12″ x 10" x 4.25" / 305 mm x 255 mm x 110 mm RoHS 3, ETL power adapter, WEEE, NSF pending

Ship
Part Number Capacity Weight
810036380218 12 lb x 0.002 lb / 6 kg x 1 g 10 lb
810036380201 30 lb x 0.005 lb / 15 kg x 2 g 10 lb Electronic Bench
