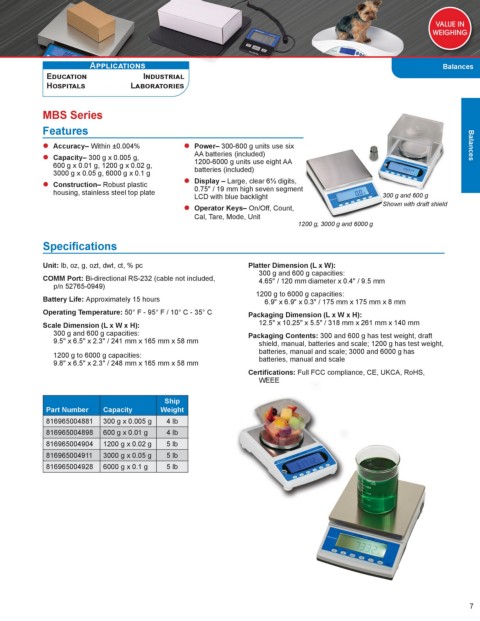

Page 7 - Brecknell_2025_product_guide_USA_L_501053.indd

Applications Balances
Education Industrial
Hospitals Laboratories

MBS Series

Features
 Accuracy– Within ±0.004%  Power– 300-600 g units use six Balances
 Capacity– 300 g x 0.005 g, AA batteries (included)
1200-6000 g units use eight AA
600 g x 0.01 g, 1200 g x 0.02 g, batteries (included)
3000 g x 0.05 g, 6000 g x 0.1 g
 Construction– Robust plastic  Display – Large, clear 6½ digits,
housing, stainless steel top plate 0.75″ / 19 mm high seven segment
LCD with blue backlight 300 g and 600 g
 Operator Keys– On/Off, Count, Shown with draft shield
Cal, Tare, Mode, Unit
1200 g, 3000 g and 6000 g

Specifications

Unit: lb, oz, g, ozt, dwt, ct, % pc Platter Dimension (L x W):
300 g and 600 g capacities:
COMM Port: Bi-directional RS-232 (cable not included, 4.65″ / 120 mm diameter x 0.4″ / 9.5 mm
p/n 52765-0949)
1200 g to 6000 g capacities:
Battery Life: Approximately 15 hours 6.9″ x 6.9″ x 0.3″ / 175 mm x 175 mm x 8 mm
Operating Temperature: 50° F - 95° F / 10° C - 35° C Packaging Dimension (L x W x H):
Scale Dimension (L x W x H): 12.5" x 10.25" x 5.5" / 318 mm x 261 mm x 140 mm
300 g and 600 g capacities: Packaging Contents: 300 and 600 g has test weight, draft
9.5" x 6.5" x 2.3" / 241 mm x 165 mm x 58 mm shield, manual, batteries and scale; 1200 g has test weight,
batteries, manual and scale; 3000 and 6000 g has
1200 g to 6000 g capacities: batteries, manual and scale
9.8" x 6.5" x 2.3" / 248 mm x 165 mm x 58 mm
Certifications: Full FCC compliance, CE, UKCA, RoHS,
WEEE

Ship
Part Number Capacity Weight
816965004881 300 g x 0.005 g 4 lb
816965004898 600 g x 0.01 g 4 lb
816965004904 1200 g x 0.02 g 5 lb
816965004911 3000 g x 0.05 g 5 lb
816965004928 6000 g x 0.1 g 5 lb

7
