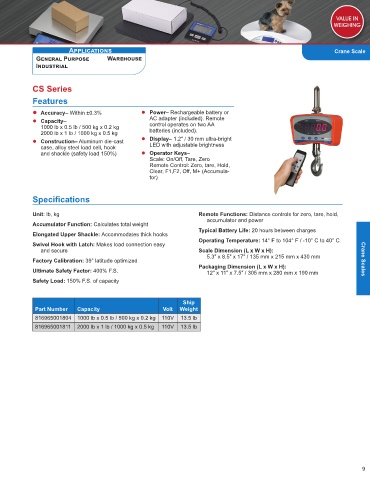

Page 9 - Brecknell_2025_product_guide_USA_L_501053.indd
P. 9

Applications                                                                            Crane Scale
             General Purpose         Warehouse
             Industrial


            CS Series

            Features
              Accuracy– Within ±0.3%            Power– Rechargeable battery or
             Capacity–                            AC adapter (included). Remote
                                                   control operates on two AA
               1000 lb x 0.5 lb / 500 kg x 0.2 kg   batteries (included).
               2000 lb x 1 lb / 1000 kg x 0.5 kg
             Construction– Aluminum die-cast    Display– 1.2" / 30 mm ultra-bright
               case, alloy steel load cell, hook   LED with adjustable brightness
               and shackle (safety load 150%)    Operator Keys–
                                                  Scale: On/Off, Tare, Zero
                                                  Remote Control: Zero, tare, Hold,
                                                  Clear, F1,F2, Off, M+ (Accumula-
                                                  tor)


            Specifications

            Unit: lb, kg                                           Remote Functions: Distance controls for zero, tare, hold,
                                                                     accumulator and power
            Accumulator Function: Calculates total weight
                                                                   Typical Battery Life: 20 hours between charges
            Elongated Upper Shackle: Accommodates thick hooks
                                                                   Operating Temperature: 14° F to 104° F / -10° C to 40° C
            Swivel Hook with Latch: Makes load connection easy
               and secure                                          Scale Dimension (L x W x H):
                                                                     5.3″ x 8.5″ x 17″ / 135 mm x 215 mm x 430 mm
            Factory Calibration: 39° latitude optimized                                                                  Crane Scales
                                                                   Packaging Dimension (L x W x H):
            Ultimate Safety Factor: 400% F.S.                        12″ x 11″ x 7.5″ / 305 mm x 280 mm x 190 mm
            Safety Load: 150% F.S. of capacity



                                                              Ship
             Part Number   Capacity                    Volt  Weight
             816965001804  1000 lb x 0.5 lb / 500 kg x 0.2 kg  110V  13.5 lb
             816965001811  2000 lb x 1 lb / 1000 kg x 0.5 kg  110V  13.5 lb
